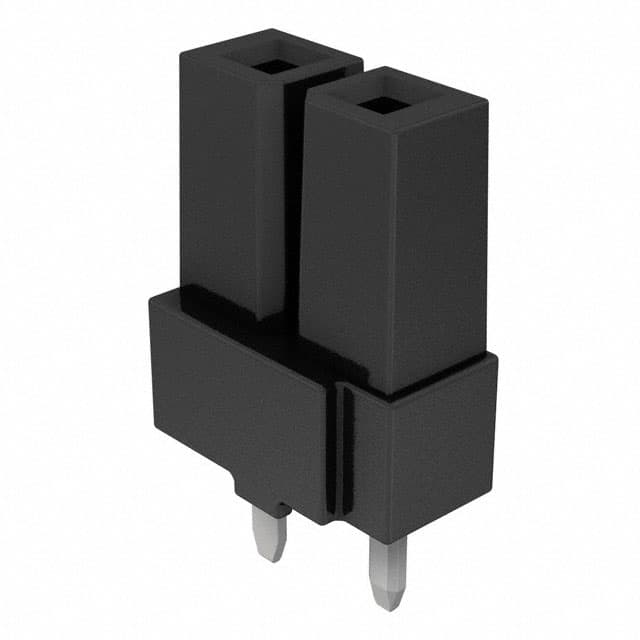

IPBS-102-01-T-S Samtec IPBS-102-01-T-S is a 2 position single row 4.20mm pitch through hole female socket header with tin plated phosphor bronze contacts.
Mfr Part #:

IPBS-102-01-T-S

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec IPBS-102-01-T-S is a 2 position single row 4.20mm pitch through hole female socket header with tin plated phosphor bronze contacts.
✓ Total Stock: 28 pcs
$ Price Range: $0.54 - $0.81

IPBS-102-01-T-S Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
Emiteli ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPBS-102-01-T-S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Type
Current Rating
Fastening Type
Insulation Color
Insulation Height
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

IPBS-102-01-T-S Description

Short technical summary and product information.

The Samtec IPBS-102-01-T-S is a 2 position single row female socket header from the IPBS series. It features a 4.20mm (0.165") pitch and is designed for through hole mounting with solder termination. The connector uses a push-pull fastening type and is intended for board to board applications.



The insulator is made of black LCP and the contacts are phosphor bronze with a tin finish. The insulation height is 12.20mm and the contact length is 3.94mm. The operating temperature range is -55°C to 105°C.



Electrically, the connector is rated for 9.3 A (with 2 pins powered) and 400 VAC / 565 VDC. It has a creepage distance of 4.27 mm and a clearance of 3.05 mm. The part is lead-free solderable.

IPBS-102-01-T-S Quick Information

Product Type: Rectangular Connector - Header
Series: IPBS
Canonical Name: Samtec IPBS-102-01-T-S 2 Position Single Row 4.20mm Pitch Through Hole Female Socket Header
Subcategory: Female Socket

IPBS-102-01-T-S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPBS-102-01-T-S Estimated Pricing

Qty Low High
1+ $0.81 $0.81
55+ $0.76 $0.76
110+ $0.72 $0.72
1,045+ $0.69 $0.69
2,035+ $0.65 $0.65
5,005+ $0.58 $0.58
10,010+ $0.54 $0.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPBS-102-01-T-S Features

  • 2 position single row female socket header.
  • 4.20mm (0.165") pitch for compact designs.
  • Rated for 9.3 A and 400 VAC / 565 VDC.
  • Through hole mounting with solder termination.
  • Tin plated phosphor bronze contacts.

IPBS-102-01-T-S Applications

  • Board to board power connections.
  • Power distribution in industrial equipment.
  • Low to medium current interconnect systems.

IPBS-102-01-T-S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IPBS-102-01-T-S have?

It has 2 positions in a single row.

What is the pitch of the IPBS-102-01-T-S?

The pitch is 4.20mm (0.165").

What is the current rating of the IPBS-102-01-T-S?

The current rating is 9.3 A with 2 pins powered.

What is the voltage rating of the IPBS-102-01-T-S?

The voltage rating is 400 VAC / 565 VDC.

What is the mounting type for the IPBS-102-01-T-S?

It is a through hole mounting connector.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

What contact finish does the IPBS-102-01-T-S have?

The contact finish is tin.
