IPBD-03-D

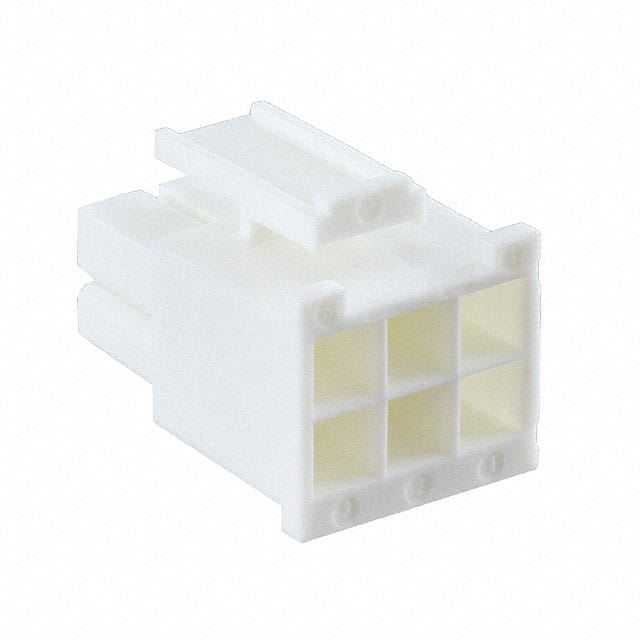

Samtec IPBD-03-D is a 6-position, 4.20mm pitch rectangular connector housing with 2 rows, crimp termination, and free hanging mounting. It is rated for 10.4A per pin and 424VAC.

✓ Total Stock: 2,805 pcs

$ Price Range: $0.22 - $0.43

IPBD-03-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Tomark Electronics Ltd ✓ Non-Authorised Inventory information	2,805 pcs On Request	2805 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IPBD-03-D Description

Short technical summary and product information.

The Samtec IPBD-03-D is a 6-position, 2-row rectangular connector housing designed for use with Samtec CC69 series crimp contacts. It features a 4.20mm (0.165") pitch and row spacing, and is free hanging (in-line) mounted. The housing is made of Valox 457 insulator material and has a latch lock fastening type for secure mating.

Electrical ratings include 10.4A per pin with 16 AWG wire (2 pins powered) and 424 VAC/600 VDC voltage rating with PVC cable. The operating temperature range is -10°C to +105°C. Contact material is Phosphor Bronze with tin over 50 µ" nickel plating.

This housing is part of the Samtec IPBD series, designed to mate with IPBT series board headers. It is suitable for wire-to-board applications requiring reliable power and signal connections in industrial and automotive environments.

IPBD-03-D Quick Information

Product Type: Rectangular Connector Housing

Series: IPBD

Canonical Name: Samtec IPBD-03-D Rectangular Connector Housing, Receptacle, 6 Position, 4.20mm Pitch, Crimp, Free Hanging

Subcategory: Receptacle Housing

IPBD-03-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPBD-03-D Estimated Pricing

Qty	Low	High
1+	$0.43	$0.43
50+	$0.38	$0.38
100+	$0.32	$0.32
500+	$0.27	$0.27
1,000+	$0.25	$0.25
4,800+	$0.25	$0.25
11,200+	$0.22	$0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPBD-03-D Features

6-position, 2-row rectangular connector housing.
4.20mm pitch for compact designs.
Free hanging in-line mounting style.
Latch lock fastening for secure connection.
Crimp termination for flexible wire assembly.

IPBD-03-D Applications

Ideal for power and signal distribution.
Used in wire-to-board cable assemblies.
Suitable for industrial and automotive applications.
Pairs with Samtec IPBT board headers.

IPBD-03-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPBD-03-D have?

The IPBD-03-D has 6 positions arranged in 2 rows.

What is the pitch of the IPBD-03-D?

The pitch is 4.20mm (0.165").

What is the current rating of the IPBD-03-D?

The current rating is 10.4A per pin with 16 AWG wire when 2 pins are powered.

What is the voltage rating of the IPBD-03-D?

The voltage rating is 424 VAC/600 VDC for PVC cable.

What is the mounting type of the IPBD-03-D?

The mounting type is free hanging (in-line).

What type of contacts does the IPBD-03-D use?

It uses female socket contacts with crimp termination.

What is the insulator material of the IPBD-03-D?

The insulator material is Valox 457.

Category	Rectangular Connector Housings
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle
Contact Material	Phosphor Bronze
Contact Plating	Sn over 50 µ" (1.27 µm) Ni
Contact Termination	Crimp
Contact Type	Female Socket
Current Rating (per Pin)	10.4 A (16 AWG)
Fastening Type	Latch Lock
Insulator Material	Valox 457
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Operating Temperature Range	-10 °C to +105 °C (PVC)
Pitch	4.20mm (0.165")
Row Spacing	0.165" (4.20mm)
SVHC Present	Not Present
Tape & Reel	No
Termination Style	Crimp
Voltage Rating	424 VAC/600 VDC (PVC)
