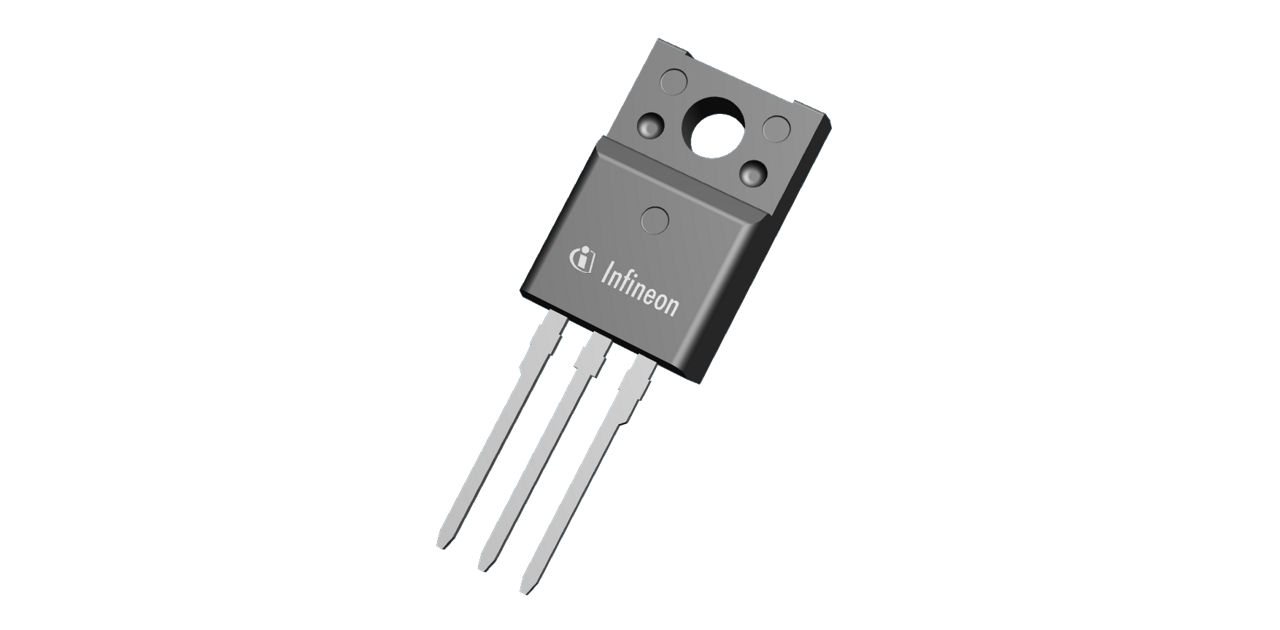

IPA80R280P7 The Infineon IPA80R280P7 is an 800V N-channel Power MOSFET from the CoolMOS P7 series. It features a low on-resistance of 0.28Ω and a continuous drain current of 17A.
Mfr Part #:

IPA80R280P7

Available from 3 distributors
Mfr Name: Infineon
Infineon
The Infineon IPA80R280P7 is an 800V N-channel Power MOSFET from the CoolMOS P7 series. It features a low on-resistance of 0.28Ω and a continuous drain current of 17A.
✓ Total Stock: 2,375 pcs
$ Price Range: $0.99

IPA80R280P7 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
375 pcs
On Request
375 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPA80R280P7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Gate Charge
Halogen Free
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

IPA80R280P7 Description

Short technical summary and product information.

The Infineon IPA80R280P7 is an 800V N-channel Power MOSFET utilizing the latest CoolMOS P7 super junction technology. This device sets a new benchmark in 800V super junction technologies, combining best-in-class performance with state-of-the-art ease-of-use.



Key electrical specifications include a maximum Drain-Source Voltage (Vds) of 800V and a maximum On-Resistance (Rds(on)) of 0.28Ω. The typical Gate Charge (Qg) is 36 nC, and it supports a continuous Drain Current (Id) of 17A. The typical Gate-Source Threshold Voltage (Vgs(th)) is 3V.



This MOSFET is designed for hard and soft switching flyback topologies, making it suitable for applications such as LED lighting, low power chargers and adapters, audio, AUX power, and industrial power supplies. It is also suitable for PFC stages in consumer applications and solar power systems.



The IPA80R280P7 comes in a PG-TO 220 FullPAK package, designed for through-hole mounting. It is fully qualified according to JEDEC for Industrial Applications, ensuring reliability for demanding environments.

IPA80R280P7 Quick Information

Product Type: N-channel Power MOSFET
Series: CoolMOS P7
Canonical Name: Infineon IPA80R280P7 N-channel Power MOSFET
Subcategory: Power MOSFET

IPA80R280P7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IPA80R280P7 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPA80R280P7 Features

  • 800V Drain-Source Voltage rating.
  • 0.28Ω maximum On-Resistance.
  • 17A continuous Drain Current.
  • CoolMOS P7 technology for high performance.
  • TO-220 FullPAK package for through-hole mounting.

IPA80R280P7 Applications

  • Recommended for flyback topologies.
  • Suitable for LED lighting applications.
  • Used in low power chargers and adapters.
  • Applicable for industrial power supplies.
  • Designed for consumer PFC stages.

IPA80R280P7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the IPA80R280P7?

The maximum drain-source voltage is 800V at Tj=25°C.

What package does the IPA80R280P7 come in?

The IPA80R280P7 is available in a PG-TO 220 FullPAK through-hole package.

What is the on-resistance of the IPA80R280P7?

The maximum on-resistance is 0.28Ω.

What is the typical gate charge of the IPA80R280P7?

The typical gate charge is 36nC.

What is the continuous drain current rating of the IPA80R280P7?

The nominal continuous drain current is 17A.

What is the gate-source threshold voltage of the IPA80R280P7?

The typical gate-source threshold voltage is 3V.

What is the ESD classification of the IPA80R280P7?

The ESD class is 2 per HBM.
