IPA60R060C7 The Infineon IPA60R060C7 is a 600V N-channel Power MOSFET featuring CoolMOS C7 technology. It offers a low on-resistance of 60mΩ and a continuous drain current of 54A.
Mfr Part #:

IPA60R060C7

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon IPA60R060C7 is a 600V N-channel Power MOSFET featuring CoolMOS C7 technology. It offers a low on-resistance of 60mΩ and a continuous drain current of 54A.
✓ Total Stock: 439 pcs

IPA60R060C7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
439 pcs
On Request
439 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPA60R060C7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Gate Charge
Lead Spacing
Lead Style
Mounting Type
Storage Temperature
View Similar Products (0)

IPA60R060C7 Description

Short technical summary and product information.

The Infineon IPA60R060C7 is a high-performance N-channel Power MOSFET utilizing the revolutionary CoolMOS C7 technology. Designed for high voltage power applications, this device operates at up to 600V and features a maximum on-resistance of 60mΩ. Its continuous drain current capability is 54A at Tj<150°C, with a pulse current rating of 135A.



This MOSFET is suitable for hard and soft switching applications, including PFC and high-performance LLC stages in SMPS for computing, server, telecom, UPS, and solar systems. Key benefits include increased efficiency due to best-in-class FOM (RDS(on)*Eoss and RDS(on)*Qg), higher dv/dt ruggedness up to 120V/ns, and increased power density solutions.

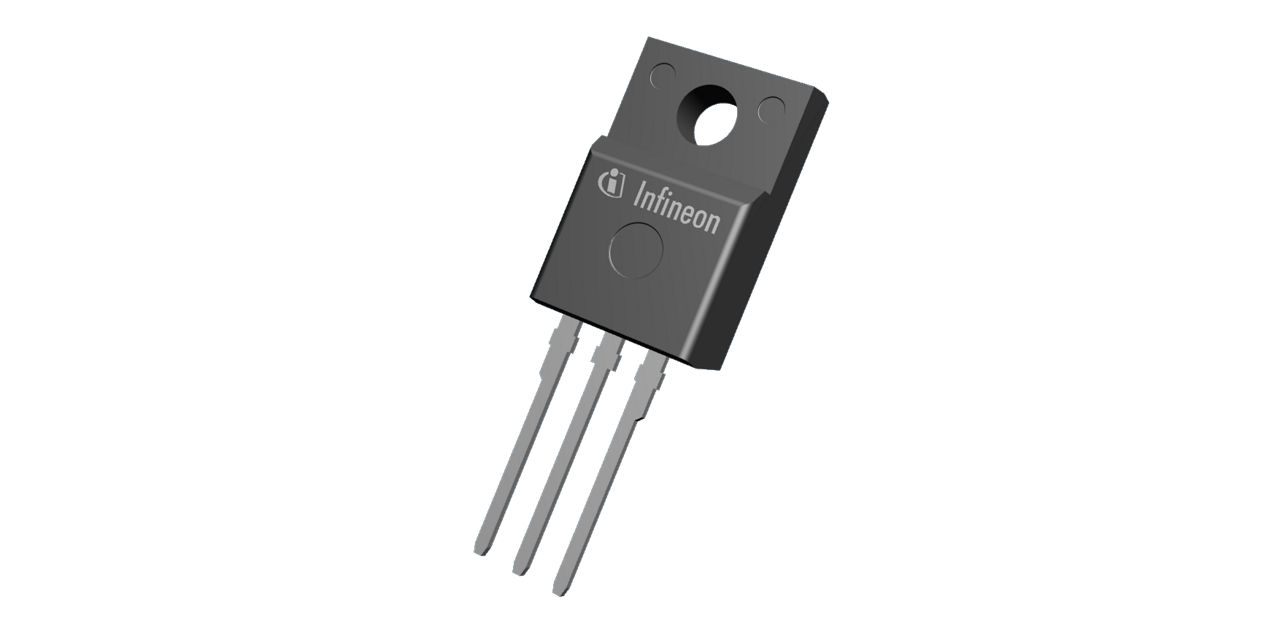

The IPA60R060C7 comes in a PG-TO 220 FullPAK package, designed for through-hole mounting. It is fully qualified according to JEDEC for Industrial Applications, making it a reliable choice for demanding power designs.

IPA60R060C7 Quick Information

Product Type: N-channel Power MOSFET
Series: CoolMOS C7
Canonical Name: IPA60R060C7 N-channel Power MOSFET
Subcategory: N-Channel

IPA60R060C7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPA60R060C7 Features

  • 600V Drain-Source Voltage rating.
  • Low 60mΩ maximum on-resistance.
  • High 135A pulse drain current.
  • Suitable for hard and soft switching.
  • PG-TO 220 FullPAK package.

IPA60R060C7 Applications

  • Used in PFC and PWM stages.
  • Ideal for high-performance SMPS.
  • Suitable for server applications.
  • Designed for telecom power supplies.
  • Applicable in solar power systems.

IPA60R060C7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating of the IPA60R060C7?

The maximum drain-source voltage is 650V.

What package is the IPA60R060C7 available in?

PG-TO 220 FullPAK through-hole package.

What is the on-resistance of the IPA60R060C7?

Maximum on-resistance is 60mΩ.

What is the gate charge of the IPA60R060C7?

Typical gate charge is 68nC.

What is the continuous drain current rating?

54A, specified at junction temperature below 150°C.

What is the pulsed drain current rating?

135A.

What is the MOSFET dv/dt ruggedness?

120V/ns.
