| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,710 pcs
|
2710 pcs | On Request | 1 | On Request | On Request | 1315 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channels | |
| Lead Style | |
| Mounting Type | |
| Tape & Reel | |
| Type |
The NXP Semiconductors IP4285CZ9-TBB is a TVS Diode offering robust transient voltage suppression. It features a 5.5V reverse standoff voltage and a typical 3.9V clamping voltage at 4A (8/20µs) peak pulse current.
Designed with four unidirectional channels, this device provides rail-to-rail steering protection. It is suitable for surface mount applications and operates within a temperature range of -40°C to 85°C. Its high peak pulse current capability makes it an effective solution for protecting sensitive circuitry.

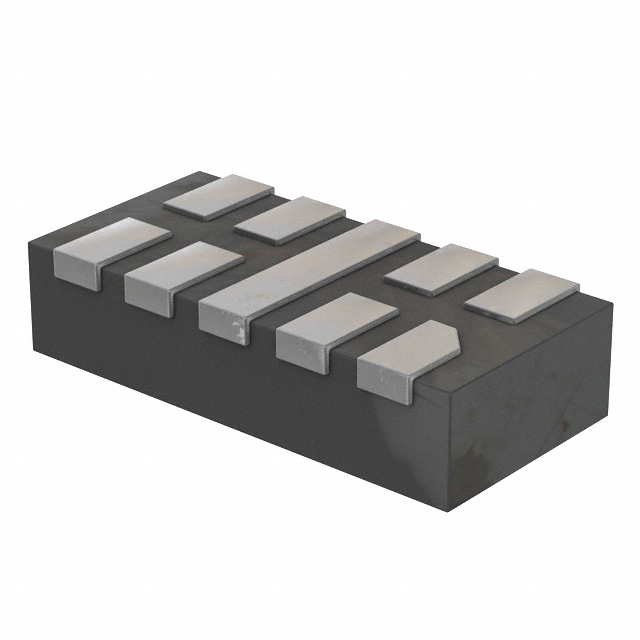

The TVS Diode is housed in a compact DFN2110-9 package, ideal for surface mounting. It is packaged in bulk for efficient integration into high-volume manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 5.5V.
The typical clamping voltage is 3.9V at 4A (8/20µs).
The peak pulse current rating is 4A (8/20µs).
The IP4285CZ9-TBB has four unidirectional channels.
It offers Steering (Rail to Rail) protection.
The package type is DFN2110-9.
The operating temperature range is -40°C to 85°C.
