| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,140 pcs
|
3140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| ESD Protection | |
| Filter Order | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| Technology | |
| Type | |
| Values | |
| Width |

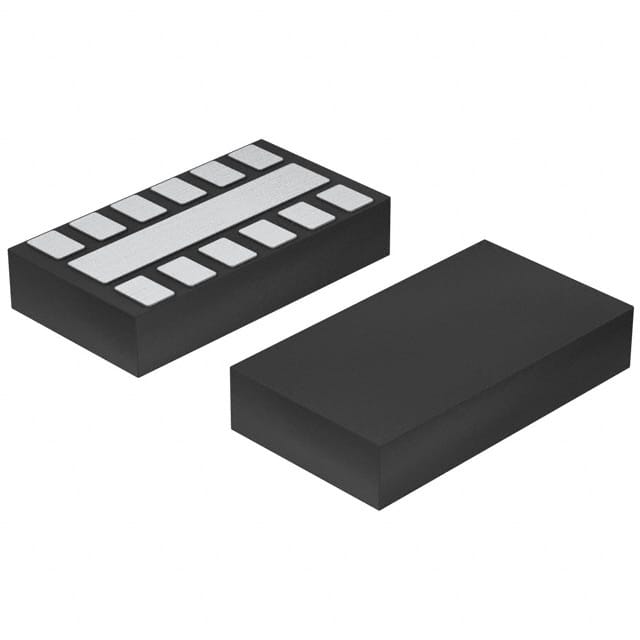

The IP4254CZ12-6,118 from NXP Semiconductors is a 6-channel low pass RC (Pi) filter array designed for EMI/RFI filtering and ESD protection in portable communication and computing devices. Each channel integrates a series resistor of 100 Ohm (typical) and a capacitor of 30 pF (typical) to form a 2nd order low pass filter, providing attenuation of 28 dB across the 800 MHz to 3 GHz frequency range.
This device features integrated ESD protection diodes capable of withstanding ±30 kV contact discharge per IEC 61000-4-2, exceeding level 4 requirements. The filter array is fabricated using monolithic silicon technology and housed in a compact 12-XFDFN exposed pad package with a 0.4 mm pitch and 0.55 mm height. It is suitable for surface mount assembly and operates over a temperature range of -40°C to 85°C.
Key specifications include six independent channels, channel resistance ranging from 80 Ohm to 120 Ohm, and channel capacitance of 30 pF at 100 kHz and 2.5V DC bias. The device is Pb-free, RoHS compliant, and free of halogen and antimony (Dark Green compliant). Typical applications include LAN/WAN interfaces, mobile handsets, cordless telephones, and wireless data systems.
12-XFDFN Exposed Pad
-40°C to 85°C
The datasheet indicates RoHS compliance (Pb-free), but this has not been independently verified.
±30 kV contact discharge per IEC 61000-4-2
6 channels
28 dB from 800 MHz to 3 GHz
100 Ohm series resistance and 30 pF capacitance (typical)
