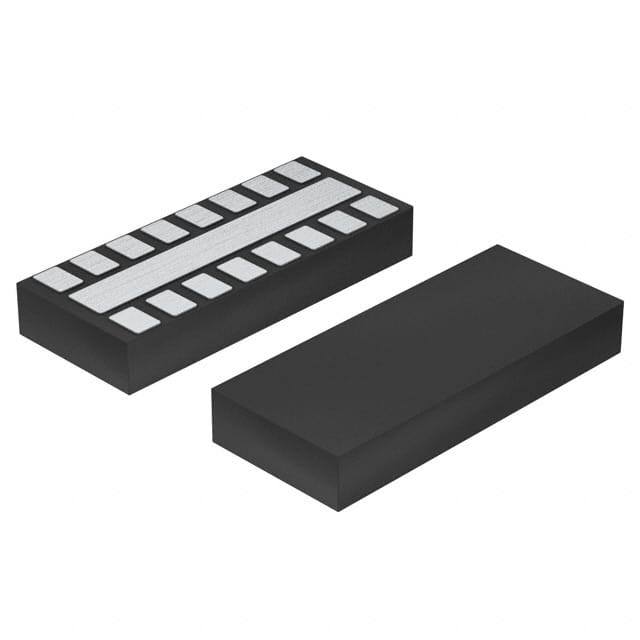

The IP4252CZ16-8,118 is an integrated 8-channel RC (Pi) low pass filter array designed for EMI/RFI filtering and downstream ESD protection. Each channel incorporates a series resistance of 40Ω and a capacitance of 12pF, providing 12dB attenuation from 800MHz to 3GHz. The device includes ESD protection diodes rated at ±30kV contact discharge per IEC 61000-4-2, far exceeding level 4 requirements.
Typical applications include LAN/WAN systems, cellular handsets, wireless data devices, and portable media players. The filter is fabricated using monolithic silicon technology and housed in a 16-XFDFN exposed pad plastic package with 0.4mm pitch and 0.55mm height. It supports surface mount assembly and operates over a temperature range of -40°C to 85°C.
The device is RoHS3 compliant and halogen-free (Dark Green compliant), making it suitable for environmentally conscious designs. The compact package enables space-saving layouts in portable electronics.
| Qty | Low | High |
|---|---|---|
| 4,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16-XFDFN Exposed Pad surface mount package.
-40°C to 85°C.
Yes, RoHS3 compliant (Dark Green).
±30 kV contact discharge per IEC 61000-4-2.
12 dB from 800 MHz to 3 GHz.
8 channels.
