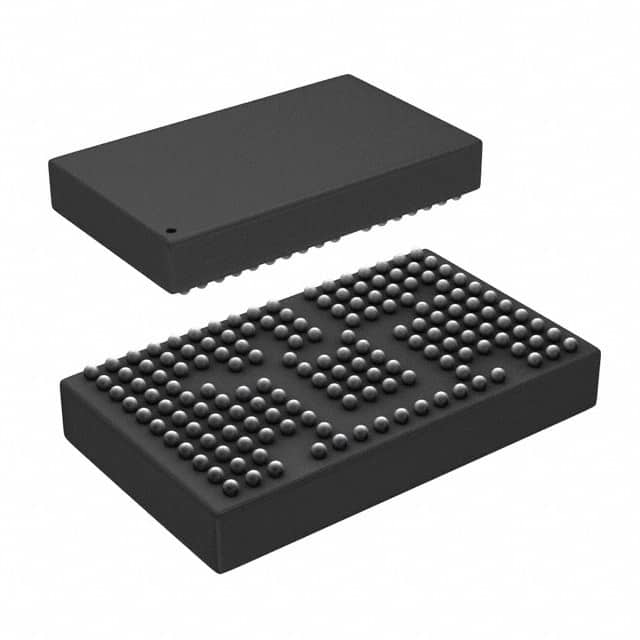

IP1201TR The Infineon Technologies IP1201TR is an adjustable buck switching regulator IC with single or dual output capability. It supports input voltages from 3.14V to 5.5V and offers output voltages adjustable from 0.8V to 3.3V.
Mfr Part #:

IP1201TR

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies IP1201TR is an adjustable buck switching regulator IC with single or dual output capability. It supports input voltages from 3.14V to 5.5V and offers output voltages adjustable from 0.8V to 3.3V.
✓ Total Stock: 3,600 pcs
$ Price Range: $0.16

IP1201TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IP1201TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Configuration
Output Type
Output Voltage
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

IP1201TR Description

Short technical summary and product information.

The Infineon Technologies IP1201TR is a versatile 2-phase synchronous buck power block designed for high-current applications. It integrates power semiconductors, PWM control, and passives into a compact package.



This device features adjustable output voltages ranging from 0.8V to 3.3V, with input voltage capabilities between 3.14V and 5.5V. It can deliver up to 30A in a single 2-phase output configuration or 15A per channel for dual outputs. The switching frequency operates nominally between 200-400kHz per channel.



Designed for ease of use, the IP1201TR minimizes layout sensitivity and includes overcurrent, overvoltage, and overtemperature protection. It is available in a 159-BGA Power Block package suitable for surface mounting.



Key features include independent soft-start per output and external synchronization capability, making it suitable for power-dense designs requiring efficient voltage regulation.

IP1201TR Quick Information

Product Type: Buck Switching Regulator IC
Series: iPOWIR™
Canonical Name: Infineon Technologies IP1201TR Buck Switching Regulator IC
Subcategory: DC DC Switching Regulators

IP1201TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IP1201TR Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

IP1201TR Features

  • Adjustable output voltage from 0.8V to 3.3V.
  • High output current up to 30A.
  • Wide input voltage range of 3.14V to 5.5V.
  • Integrated power block design.
  • Surface mountable 159-BGA package.

IP1201TR Applications

  • Suitable for high current power supplies.
  • Ideal for point-of-load regulation.
  • Used in compact electronic devices.
  • Supports dual output configurations.

IP1201TR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the IP1201TR?

The input voltage range is 3.14V to 5.5V.

What is the output voltage range of the IP1201TR?

The output voltage is adjustable from 0.8V to 3.3V.

What is the maximum output current of the IP1201TR?

The device supports dual 15A outputs or a single 30A output.

What is the operating temperature range of the IP1201TR?

The operating junction temperature range is -40°C to 125°C.

What package is the IP1201TR available in?

The IP1201TR is supplied in a surface mount 159-BBGA Power Module package measuring 15.5mm x 9.25mm x 2.6mm.

What is the switching frequency of the IP1201TR?

The per-channel switching frequency is nominally 200kHz to 400kHz, with a total range of 170kHz to 460kHz.
