| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | 2406 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Sensing Method | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The Texas Instruments INA232AIDDFR is a versatile 16-bit digital current monitor IC that supports both high-side and low-side current sensing configurations. It operates from a wide supply voltage range of 1.7V to 5.5V and features an I2C/SMBus compatible interface, making it suitable for various digital bus voltages including 1.2V, 1.8V, 3.3V, and 5.0V.
This device reports current, bus voltage, and power measurements with a high degree of accuracy, boasting a gain error of ±0.3% maximum and an input offset voltage of ±50 µV maximum. It offers a programmable full-scale range of 20mV or 80mV and a broad input common-mode range from -0.3V to 48V. The INA232AIDDFR includes configurable averaging options and alert limits for over/under current and voltage events.

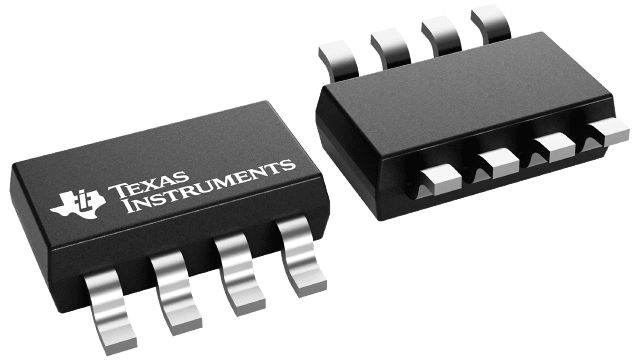

Packaged in a compact SOT-23-8 (TSOT-23-8) surface-mount form factor, the INA232AIDDFR is designed for applications requiring precise current monitoring. Its operating temperature range is -40°C to 125°C, ensuring reliable performance in demanding environments. Applications include smart speakers, battery chargers, power management systems, and battery cell monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The INA232AIDDFR operates from a 1.7V to 5.5V power supply.
The INA232AIDDFR is available in a SOT-23-8 package.
The operating temperature range for the INA232AIDDFR is -40°C to 125°C.
The INA232AIDDFR has a maximum gain error of 0.3%.
The INA232AIDDFR uses an I2C and SMBus compatible interface.
