| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54,788 pcs
|
54788 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Resolution | |
| Supply Current |

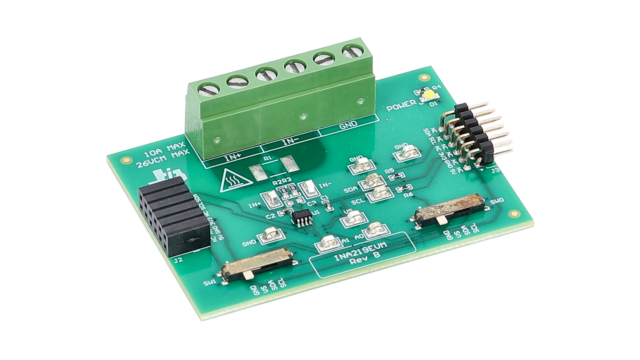

The Texas Instruments INA219 is a versatile current shunt and power monitor designed for applications requiring precise measurement of voltage, current, and power. It utilizes an I2C or SMBUS-compatible interface, making integration into digital systems straightforward. The device can sense bus voltages ranging from 0 to 26 V and reports current, voltage, and calculated power.
Key features include a programmable calibration value for direct current readouts in amperes and a multiplying register for power calculations in watts. The INA219 offers 16 programmable addresses, allowing multiple devices on the same bus. It is available in SOT23-8 and SOIC-8 packages, supporting surface mount applications.
With a wide operating temperature range of -40°C to 125°C, the INA219 is suitable for demanding environments. The device draws a maximum of 1 mA of supply current from a 3- to 5.5-V supply. The INA219B grade offers higher accuracy, with a maximum error of 0.5% over temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The INA219 senses bus voltages from 0V to 26V.
The supply voltage range is 3V to 5.5V.
The INA219 is available in SOIC-8 and SOT-23-8 packages.
The operating temperature range is -40°C to 125°C.
The INA219B offers 0.5% maximum accuracy over temperature.
The INA219 supports I2C and SMBus digital interfaces.
The maximum supply current is 1mA.
