| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,998 pcs
|
4998 pcs | On Request | 1 | On Request | On Request | 20 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Mounting Type | |
| Operating Temperature | |
| Quiescent Current | |
| Slew Rate | |
| Storage Temperature | |
| Tape & Reel |
The Texas Instruments INA213BQDCKRQ1 is an automotive-grade, voltage output, current-shunt monitor. It is designed for bidirectional, high-precision current measurements, capable of operating with a common-mode voltage range from -0.3 V to 26 V.
Key electrical specifications include a voltage gain of 50 V/V, a maximum input offset voltage of ±100 µV, and a bandwidth of 80 kHz. The device exhibits a low quiescent current of 0.115 mA (max) and a slew rate of 0.4 V/µs. Accuracy is maintained with a gain error of ±1% (max) and a gain drift of 10 ppm/°C (max).

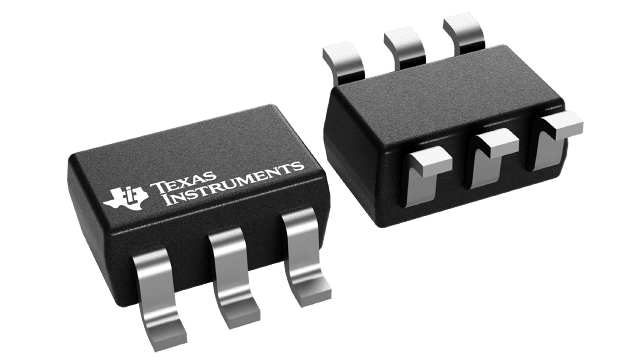

This amplifier is suitable for low-side or high-side measurements and is AEC-Q100 qualified for automotive applications, operating within a temperature range of -40°C to +125°C. It comes in a compact 6-pin SC70 package, suitable for surface mounting.
The INA213BQDCKRQ1 is functional safety-capable, with documentation available to aid in functional safety system design. Its precision and wide operating range make it a versatile component for various automotive current monitoring tasks.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The common-mode voltage range is from -0.3 V to 26 V.
The voltage gain is 50 V/V.
The operating temperature range is -40°C to +125°C.
It is supplied in a 6-pin SC70 package.
Yes, it is AEC-Q100 qualified for automotive applications.
