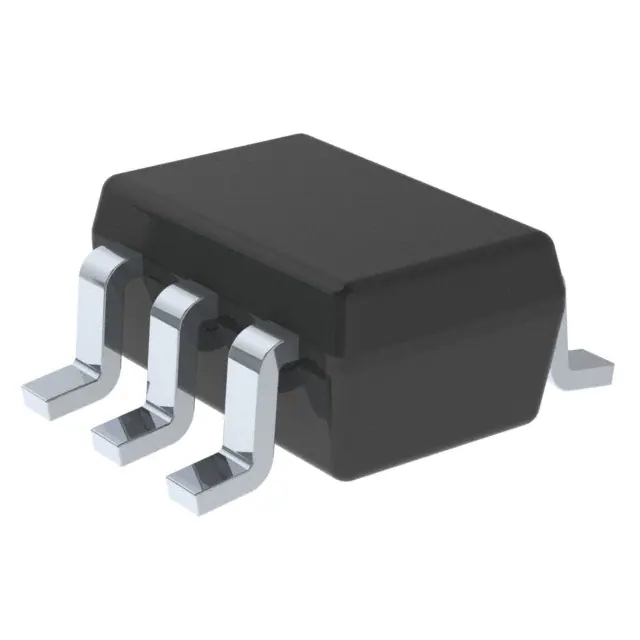

INA210BIDCKR The Texas Instruments INA210BIDCKR is a current sense amplifier designed for precise current monitoring. It operates over a wide supply voltage range and features low input offset voltage.
Mfr Part #:

INA210BIDCKR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments INA210BIDCKR is a current sense amplifier designed for precise current monitoring. It operates over a wide supply voltage range and features low input offset voltage.
✓ Total Stock: 1,837 pcs
$ Price Range: $1.14

INA210BIDCKR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,837 pcs
On Request
1837 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

INA210BIDCKR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Mounting Type
Number of Circuits
Operating Temperature
SVHC Present
Slew Rate
Supplier Device Package
View Similar Products (0)

INA210BIDCKR Description

Short technical summary and product information.

The Texas Instruments INA210BIDCKR is a high-performance current sense amplifier belonging to the Zero-Drift series. This device is designed for accurate current measurement across a broad supply voltage range, from 2.7V to 26V.



Key electrical specifications include a low input offset voltage of 0.55 µV and a low input bias current of 28 µA. The amplifier offers a slew rate of 0.4V/µs and a gain bandwidth product of 14 kHz, making it suitable for various monitoring applications.



Packaged in a compact SC-70-6 surface-mount form factor, the INA210BIDCKR is ideal for space-constrained designs. It operates reliably within an extended temperature range of -40°C to 125°C, ensuring performance in demanding environments.



This current sense amplifier is a component within the Integrated Circuits (ICs) category, specifically under Power Management (PMIC) and Current RegulationManagement. Its robust design and precise measurements make it a valuable component for power monitoring and control systems.

INA210BIDCKR Quick Information

Product Type: Current Sense Amplifier
Series: Zero-Drift
Canonical Name: Texas Instruments INA210BIDCKR Current Sense Amplifier
Subcategory: Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps

INA210BIDCKR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

INA210BIDCKR Estimated Pricing

Qty Low High
1+ $1.14 $1.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

INA210BIDCKR Features

  • Accurate current sense amplification.
  • Wide 2.7V to 26V supply voltage range.
  • Low 0.55 µV input offset voltage.
  • Operates from -40°C to 125°C.
  • Compact SC-70-6 surface-mount package.

INA210BIDCKR Applications

  • Ideal for power supply current monitoring.
  • Suitable for battery charge management.
  • Used in system power monitoring.
  • Applicable for motor control current sensing.

INA210BIDCKR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the INA210BIDCKR?

The supply voltage range is 2.7 V to 26 V.

What is the operating temperature range of the INA210BIDCKR?

-40°C to 125°C.

What package is the INA210BIDCKR available in?

SC-70-6 (also known as 6-TSSOP, SC-88, SOT-363).

What is the gain bandwidth product of the INA210BIDCKR?

14 kHz.

What is the slew rate of the INA210BIDCKR?

0.4 V/µs.

What is the input offset voltage of the INA210BIDCKR?

0.55 µV.
