Mfr Part #:

IMSA-11600S-20B-GFN4

Name: IMSA-11600S-20B-GFN4
Brand: IRISO (IRISO ELECTRONICS CO.)
SKU: IMSA-11600S-20B-GFN4

Description:

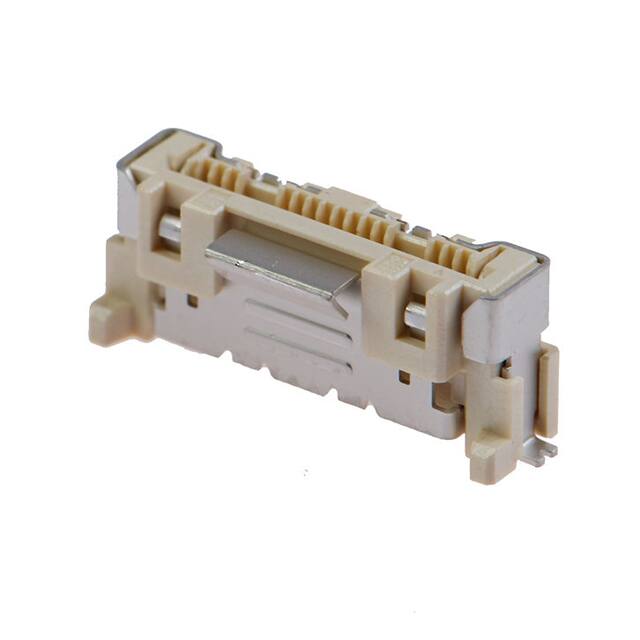

CONN FFC VERT 20POS 0.5MM SMD

Stock on Request

IMSA-11600S-20B-GFN4 Description

Short technical summary and product information.

CONN FFC VERT 20POS 0.5MM SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Name	IRISO (IRISO ELECTRONICS CO.)
Cable End Type	Notched
Connector	Contacts, Vertical - 1 Sided
Contact Finish	Gold
Contact Material	Copper Alloy
FFC, FCB Thickness	0.30mm
Features	Solder Retention
Flat Flex Type	FFC, FPC
Height Above Board	0.236" (6.00mm)
Housing Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
Voltage Rating	50V
