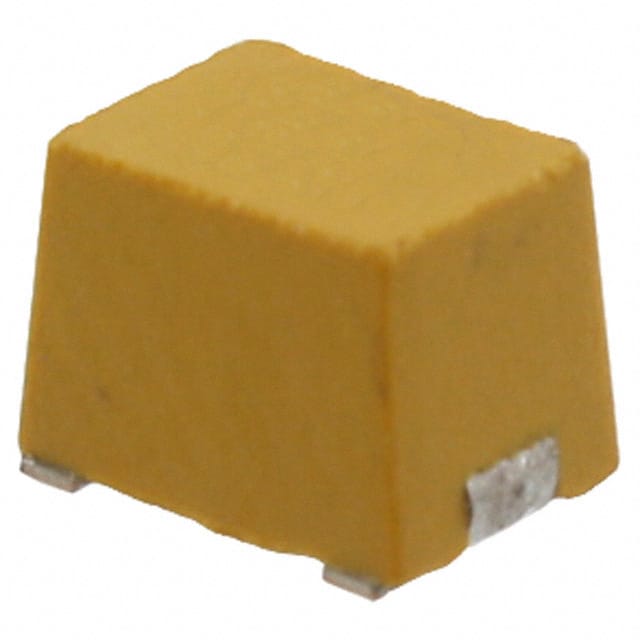

IMC1812ES100K Fixed inductor, 10µH, ±10% tolerance, 250mA rated current, 1.6Ω max DCR, surface mount 1812 package.
Mfr Part #:

IMC1812ES100K

Available from 1 distributors
Mfr Name: Vishay
Vishay
Fixed inductor, 10µH, ±10% tolerance, 250mA rated current, 1.6Ω max DCR, surface mount 1812 package.
✓ Total Stock: 1,983 pcs
$ Price Range: $0.58 - $1.21

IMC1812ES100K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,983 pcs
On Request
1983 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IMC1812ES100K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
SVHC Present
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

IMC1812ES100K Description

Short technical summary and product information.

The IMC1812ES100K from Vishay Dale is a wirewound, surface-mount RF inductor with a molded construction for superior strength and moisture resistance. It offers an inductance of 10µH with ±10% tolerance, a minimum Q of 50 at 2.52 MHz, and a self-resonant frequency of 20 MHz minimum. The DC resistance is 1.6Ω maximum, and the rated DC current is 250 mA.



This inductor uses an iron powder core (typical for 1.0µH to 120µH values) and is unshielded. It is designed for high frequency filtering and impedance matching applications. The package is 1812 (4532 metric) with dimensions 4.50 mm x 3.20 mm x 3.40 mm, and it is suitable for surface mount assembly.



The operating temperature range is -55°C to +125°C, making it suitable for a wide range of environments. The part is declared RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

IMC1812ES100K Quick Information

Product Type: Wirewound RF Inductor
Series: IMC-1812
Canonical Name: IMC1812ES100K Vishay Dale Wirewound Molded RF Inductor
Subcategory: Wirewound Molded Inductor

IMC1812ES100K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IMC1812ES100K Estimated Pricing

Qty Low High
1+ $1.21 $1.21
10+ $0.99 $0.99
100+ $0.82 $0.82
250+ $0.80 $0.80
500+ $0.76 $0.76
1,000+ $0.68 $0.68
2,000+ $0.62 $0.62
4,000+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

IMC1812ES100K Features

  • Wirewound molded construction for moisture resistance.
  • High Q of 50 at 2.52 MHz.
  • Rated current of 250 mA.
  • Surface mount 1812 package.
  • Operating temperature range -55°C to 125°C.

IMC1812ES100K Applications

  • Used in RF filtering circuits.
  • Ideal for impedance matching applications.
  • Suitable for high frequency signal processing.
  • Employed in telecommunications equipment.

IMC1812ES100K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the IMC1812ES100K?

The inductance is 10 µH.

What is the inductance tolerance?

The tolerance is ±10%.

What is the rated current?

The rated DC current is 250 mA.

What is the DC resistance?

The DC resistance (DCR) is 1.6 Ω maximum.

What is the minimum Q factor?

The minimum Q factor is 50 at 2.52 MHz.

What is the self-resonant frequency?

The self-resonant frequency (SRF) is 20 MHz minimum.

What is the package size?

The package is 1812 (4532 Metric) with dimensions 4.50 mm x 3.20 mm x 3.40 mm.
