| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material (Nominal) | |
| Current Rating (Amps) | |
| Current Rating (Nominal/Maximum) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance Tolerance (@ 100 kHz) | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Minimum @ 250 MHz) | |
| Self Resonant Frequency (Minimum) | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Maximum) | |
| inductance (Nominal @ 250 MHz) |

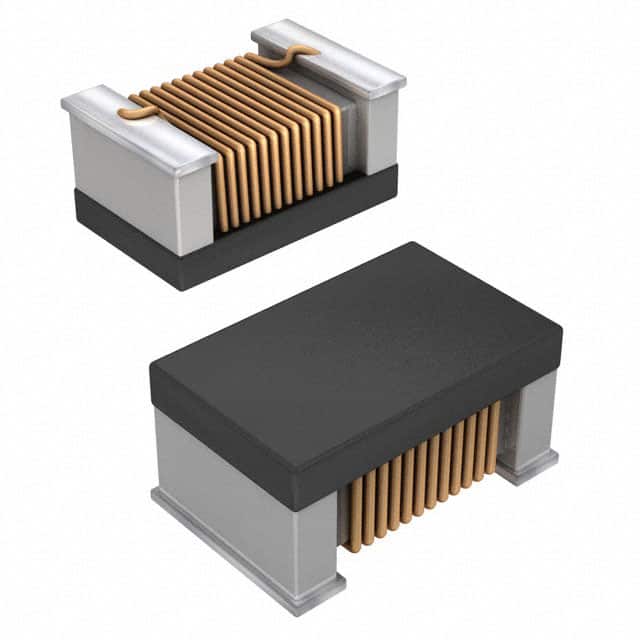

This Vishay Dale IMC0805ERR33J01 is a wirewound, surface mount fixed inductor designed for various electronic applications. It offers an inductance of 330nH with a tolerance of ±5% and a rated DC current of 300mA. The inductor has a maximum DC resistance of 1.65 Ohms and a Q factor of 45 at 250MHz.
Constructed with a ceramic core, this unshielded inductor operates within a temperature range of -40°C to 105°C. Its 0805 (2012 Metric) package size, measuring 2.00mm in length and 1.25mm in width, makes it suitable for space-constrained designs. The component is compatible with vapor phase and infrared reflow soldering and comes in tape and reel packaging for automatic handling.
Key electrical specifications include a self-resonant frequency of 800MHz. The component is compliant with RoHS Directive 2002/95/EC and is Halogen-free according to IEC 61249-2-21 definition.
The inductance value is 330 nH.
The tolerance is ±5%.
The rated DC current is 300mA.
The maximum DC resistance is 1.65 Ohm.
The minimum Q factor at 250MHz is 45.
The minimum self-resonant frequency is 800MHz.
The operating temperature range is -40°C to 105°C.
The core material is Ceramic.
The package dimensions are 2.00mm x 1.25mm (0.079" x 0.049").
Yes, it is RoHS3 Compliant.
Yes, it is Halogen-free.
