| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
The XP Power IMA0115D05 is a 1-watt isolated DC-DC converter from the IMA01 series, designed for medical applications. It provides dual ±5V outputs at 100mA each from a 13.5-16.5V input range. The converter features 4000VAC isolation with 2µA patient leakage current, meeting 1 x MOPP requirements at 300VAC.
Key electrical specifications include 72% efficiency, ±5% initial set accuracy, 150mV pk-pk ripple and noise, and 10% load regulation. The device operates over -40°C to 75°C ambient temperature range with full load capability at 75°C. It includes short circuit protection (SCP) and requires a minimum 10% load for proper regulation.

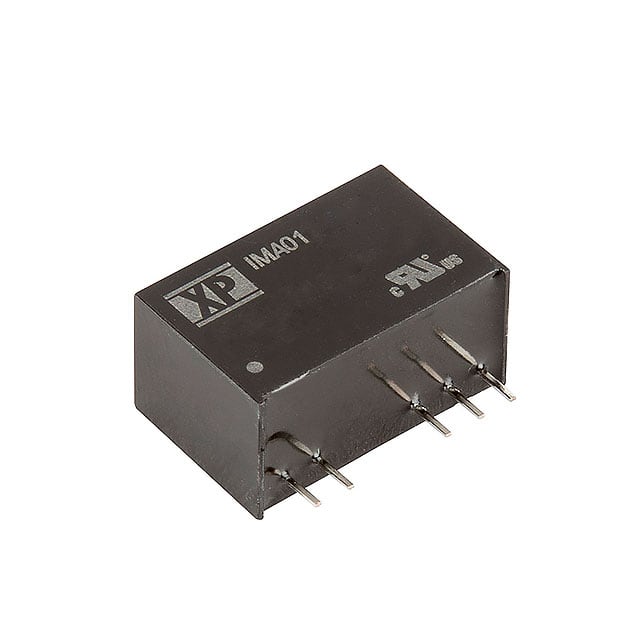

The converter is housed in a compact 7-SIP module measuring 19.5mm x 9.2mm x 11.1mm with through-hole mounting. It is suitable for space-constrained medical, industrial, and IoT applications requiring isolated dual-rail power.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.06 | $8.06 |
| 5+ | $7.82 | $7.82 |
| 10+ | $7.58 | $7.58 |
| 20+ | $7.25 | $7.25 |
| 100+ | $7.15 | $7.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IMA0115D05 provides dual ±5V outputs, each rated at 100mA.
The input voltage range is 13.5V to 16.5V.
It provides 4000VAC isolation with 2µA patient leakage current.
The operating temperature range is -40°C to 75°C.
It comes in a 7-SIP through-hole module measuring 19.5mm x 9.2mm x 11.1mm.
RoHS3 compliance is indicated but unverified.
