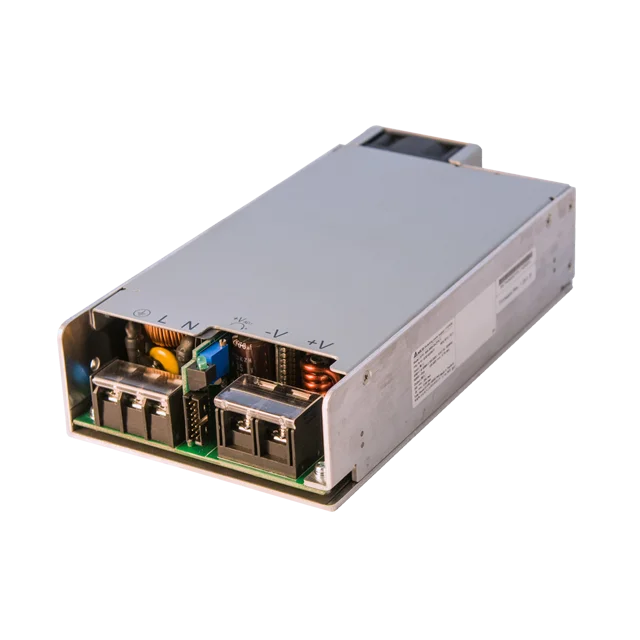

The Delta Electronics IMA-S600-48-ZYPLY is an enclosed AC/DC converter designed for industrial and medical applications. It delivers a nominal 48Vdc output at up to 12.5A, with a maximum power of 600W. The unit operates across a wide AC input voltage range of 80 to 275 Vac or a DC input range of 120 to 300 Vdc.
Key features include high efficiency, up to 94% at 230 Vac, and a 5 Vdc standby output. The converter offers adjustable output voltage, remote ON/OFF control, and PMBus™ compatibility for monitoring and programming. It is built with a chassis mount type and has dimensions of 8.00" L x 4.00" W x 1.60" H.
This power supply series is approved for medical (IEC 60601-1-2) and industrial (IEC 62368) standards. It also includes features like active current sharing, 2x MOPP, and a low acoustic noise level. The operating temperature range is -20°C to 70°C with derating, and it boasts a typical MTBF of 500,000 hours.
The nominal main DC output voltage is 48 Vdc, with an adjustment range of 38.4 Vdc to 56.0 Vdc.
The maximum output current is 12.5 A.
The AC operating input voltage range is 80 Vac to 275 Vac, and the DC input voltage range is 120 Vdc to 300 Vdc.
The efficiency is up to 94% at 230 Vac and 70% load, and 92% at 115 Vac and 70% load.
The operating temperature range is -20°C to 70°C, with derating.
Yes, it features a 5 Vdc standby output.
It has safety approvals for Medical (IEC 60601-1-2) and Industrial (IEC 62368) applications.
