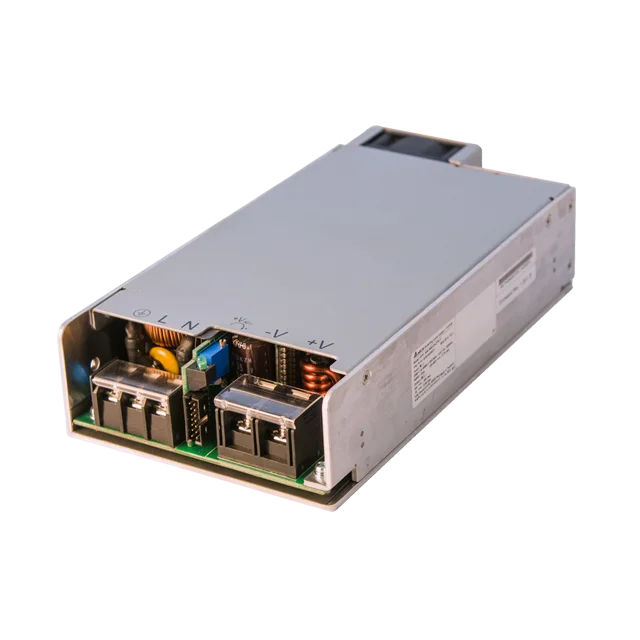

The Delta Electronics IMA-S600-12-ZYPLY is an enclosed AC DC converter designed for industrial and medical applications. It delivers a nominal output voltage of 12V with a maximum current of 50A, providing up to 600W of power.
This converter operates across a wide AC input voltage range of 80 to 275 Vac and also supports a DC input range of 120 to 300 Vdc. It boasts high efficiency, reaching up to 92% at 230 Vac and 90% at 115 Vac. Key features include an adjustable output voltage range of 9.6V to 14.4V, a 5Vdc standby output, PMBus compatibility for control and monitoring, and remote ON/OFF functionality.
The unit is chassis mountable and measures 203.2mm x 101.6mm x 40.6mm. It operates within a temperature range of -20°C to 70°C with derating. The IMA-S600-12-ZYPLY is built for reliability with a typical MTBF of 500,000 hours and comes with a 3-year warranty.
The nominal output voltage is 12 Vdc, adjustable from 9.6 Vdc to 14.4 Vdc.
The maximum output current is 50 A.
The AC input voltage range is 80 to 275 Vac, and the DC input voltage range is 120 to 300 Vdc.
The efficiency is up to 92% at 230 Vac and 90% at 115 Vac.
The dimensions are 203.2mm (Length) x 101.6mm (Width) x 40.6mm (Height).
The operating temperature range is -20°C to 70°C, with derating.
Yes, the model IMA-S600-12-ZYPLY supports remote ON/OFF functionality.
