Mfr Part #:

IM818-MCC

Mfr Name: Infineon

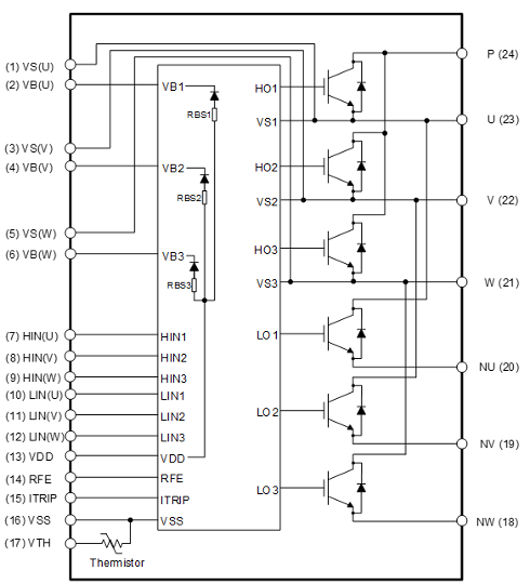

The Infineon IM818-MCC is an Intelligent Power Module (IPM) designed for controlling three-phase AC and permanent magnet motors. It integrates power and control components for increased reliability and optimized system costs.

✓ Total Stock: 1,718 pcs

$ Price Range: $2.25

IM818-MCC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,718 pcs On Request	1718 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IM818-MCC Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Features	Integrated bootstrap functionality; Over current shutdown; Built-in NTC thermistor for temperature monitor; Under-voltage lockout at all channels; Low side emitter pins accessible for phase current monitoring (open emitter); Anti cross-conduction; All of 6 switches turn off during protection; Programmable fault clear timing and enable input
Mounting Type	Through Hole
Voltage Rating	1200V

View Similar Products (0)

IM818-MCC Description

Short technical summary and product information.

The Infineon CIPOS Maxi IM818-MCC is an Intelligent Power Module (IPM) designed for variable speed drive applications. It integrates power and control components to enhance reliability, reduce PCB size, and lower system costs.

This module is engineered to control three-phase AC motors and permanent magnet motors, making it suitable for applications such as low-power motor drives, pumps, fan drives, and active filters for HVAC systems. The product concept focuses on applications requiring good thermal performance, electrical isolation, EMI-safe control, and overload protection.

Key features include 1200V TRENCHSTOP IGBT4s and Emitter Controlled diodes, combined with an optimized 6-channel SOI gate driver. It offers integrated bootstrap functionality, over-current shutdown, under-voltage lockout, and a built-in NTC thermistor for temperature monitoring. The module is housed in a fully isolated Dual In-Line molded package and features lead-free terminal plating, making it RoHS compliant.

Product validation confirms its suitability for industrial applications according to JEDEC standards.

IM818-MCC Quick Information

Product Type: Intelligent Power Module

Series: IM818

Canonical Name: Infineon IM818-MCC CIPOS Maxi Intelligent Power Module

Subcategory: Motor Drivers, Controllers

IM818-MCC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-free terminal plating

IM818-MCC Estimated Pricing

Qty	Low	High
1+	$2.25	$2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

IM818-MCC Features

Fully isolated Dual In-Line molded module.
1200V TRENCHSTOP IGBT4 technology.
Rugged 1200V SOI gate driver.
Integrated NTC thermistor for temperature monitor.
Over current shutdown and under-voltage lockout.

IM818-MCC Applications

Variable speed drive applications.
Low power motor drives.
HVAC fan drives and active filters.
Pumps and servo drives.

IM818-MCC FAQs

7 frequently asked questions generated from this part’s specifications.

What type of IGBTs does the IM818-MCC use?

The IM818-MCC uses 1200V TRENCHSTOP IGBT4.

What is the gate driver technology in the IM818-MCC?

It features a 1200V SOI gate driver technology.

What is the voltage rating of the IM818-MCC?

The voltage rating is 1200V.

What is the maximum allowable negative VS potential?

The allowable negative VS potential is up to -11V for signal transmission at VBS = 15V.

Does the IM818-MCC have over-current protection?

Yes, it features over current shutdown.

Is there a temperature monitoring feature on the IM818-MCC?

Yes, it has a built-in NTC thermistor for temperature monitor.

What package type is the IM818-MCC?

The IM818-MCC is in a DIP package.
