| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Case Temperature | |
| Control Features | |
| Cooling | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Reflected Ripple Current | |
| Input Surge | |
| Input Voltage Range | |
| Isolation Capacitance | |
| Isolation Resistance | |
| Isolation Voltage | |
| Lead Spacing | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Mounting Type | |
| Number of Leads | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Remote On/Off | |
| Ripple & Noise | |
| Safety Approvals | |
| Setpoint Accuracy | |
| Short circuit protection | |
| Standard Number | |
| Storage Temperature | |
| Switching Frequency | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width |

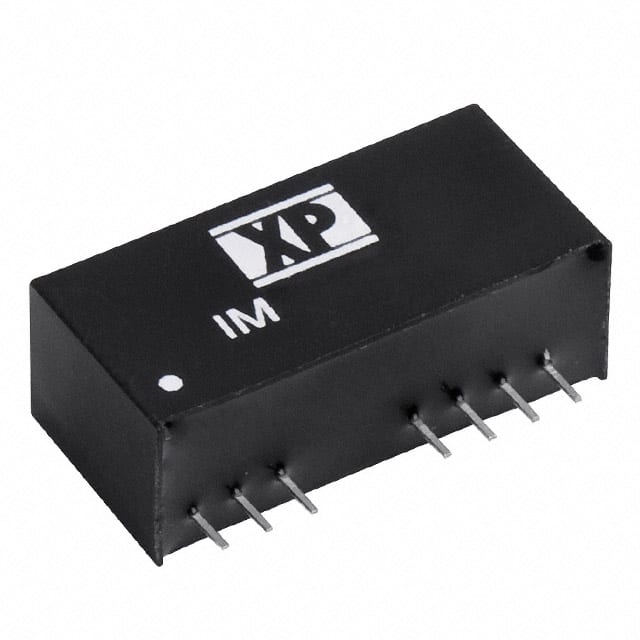

The XP Power IM4805SA is a regulated, isolated DC-DC converter from the IM series, designed for industrial and commercial applications. It accepts a wide 4:1 input voltage range of 18 to 75 VDC and provides a stable 5 V output at up to 400 mA, with a total output power of 2 W.
Key electrical specifications include a typical efficiency of 80%, line and load regulation of ±0.5% maximum, and a setpoint accuracy of ±1%. Output ripple and noise is limited to 50 mV pk-pk (20 MHz bandwidth). The converter features continuous short circuit protection with auto recovery and a remote on/off control function.
The IM4805SA is housed in a 9-SIP module with 7 leads and a 2.54 mm pin spacing. It measures 26.0 x 9.2 x 12.5 mm and weighs 6.5 g. The operating temperature range is -40°C to +100°C with convection cooling, and it provides 1500 VDC input-to-output isolation. Safety approvals include UL60950-1, CSA C22.2 No.60950-1, UL62368-1, CE, and UKCA.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.79 | $14.79 |
| 5+ | $14.35 | $14.35 |
| 10+ | $13.90 | $13.90 |
| 30+ | $13.75 | $13.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IM4805SA provides a regulated 5V output at up to 400mA.
The input voltage range is 18 to 75 VDC.
The operating temperature range is -40°C to +100°C.
The part is listed as RoHS3 Compliant, though this is unverified.
It is housed in a 9-SIP module with 7 leads, through-hole mounting.
Yes, it features continuous short circuit protection with auto recovery.
The isolation voltage is 1500 VDC.
