| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,505 pcs
|
2505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Isolation | |
| Output Current | |
| Quantity | |
| Storage Temperature |

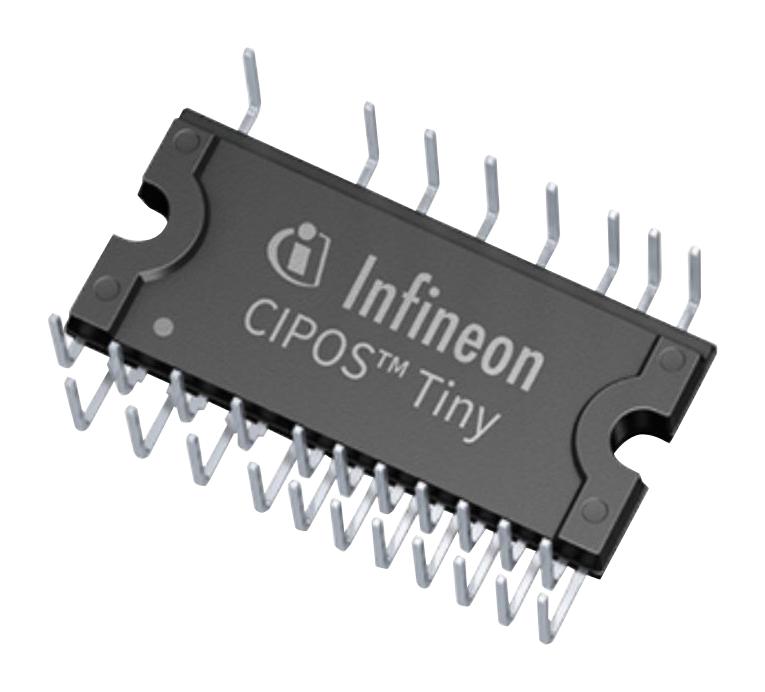

The Infineon IM393-M6E is a highly integrated 600V, 10A Power Hybrid IC (IPM) designed for advanced appliance motor drives. It utilizes low VCE(on) Trench IGBT technology for optimized performance and comes in a fully isolated, thermally enhanced package.
Key features include integrated gate drivers, a bootstrap function, temperature monitoring, over-current protection, and under-voltage lockout for all channels. These features ensure high reliability and fail-safe operation in demanding applications. The IPM is recognized by UL and qualified under JEDEC standards, making it suitable for industrial applications.
This compact IPM simplifies design and is ideal for energy-efficient fans, pumps, washing machines, air conditioners, refrigerators, and other low-power motor drive applications. Its robust thermal and electrical specifications ensure dependable operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $103.07 | $103.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The blocking voltage is 600V.
The continuous output current is 10A at 25°C.
The isolation test voltage is 2000V RMS for 1 minute.
The operating junction temperature range is -40°C to 150°C.
The package type is Tiny DIP.
The standard package quantity is 30.
