| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channels | |
| Input Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Propagation Delay | |
| Speed |

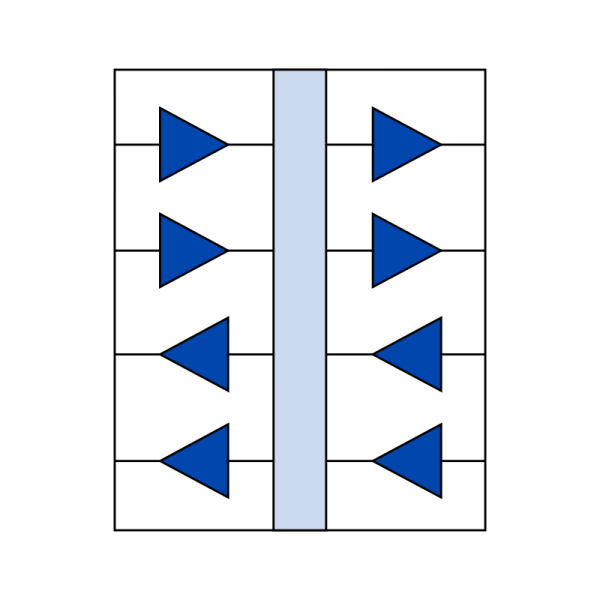

The IL716E from NVE Corporation is a 3.3-volt, multichannel isolated logic buffer. It features 4 channels with 2 transmit and 2 receive directions, operating at speeds up to 110 Mbps. This isolator provides 2500 Vrms of isolation voltage and boasts a transient immunity of 50 kV/microsecond.
Designed with CMOS-compatible inputs and outputs, the IL716E includes automatic level shifting and a low propagation delay of 10 ns, with a pulse width distortion of 3 ns. The maximum operating temperature is 100°C.
This component is housed in a 16-pin wide-body SOIC package (SOIC16WB), suitable for surface mount applications. The standard package quantity is 2810 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.46 | $8.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IL716E operates at 3.3 V.
The IL716E is available in a SOIC16WB surface-mount package.
The maximum operating temperature is 100 °C.
The IL716E supports data rates up to 110 Mbps.
The isolation voltage is 2500 Vrms.
Both input and output types are CMOS.
The transient immunity is 50 kV/µs.
