| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Load Voltage | |
| Low Input Current | |
| Maximum Continuous Output Current | |
| Maximum Trigger Current | |
| Mounting Type | |
| Number of Channels | |
| Off-state Output Voltage | |
| Operating Temperature | |
| Output Type | |
| Power Dissipation | |
| Static dV | |
| Supplier Device Package | |
| TRMS | |
| Tape and Reel | |
| Turn On Time | |
| Voltage | |
| Zero Crossing Circuit |

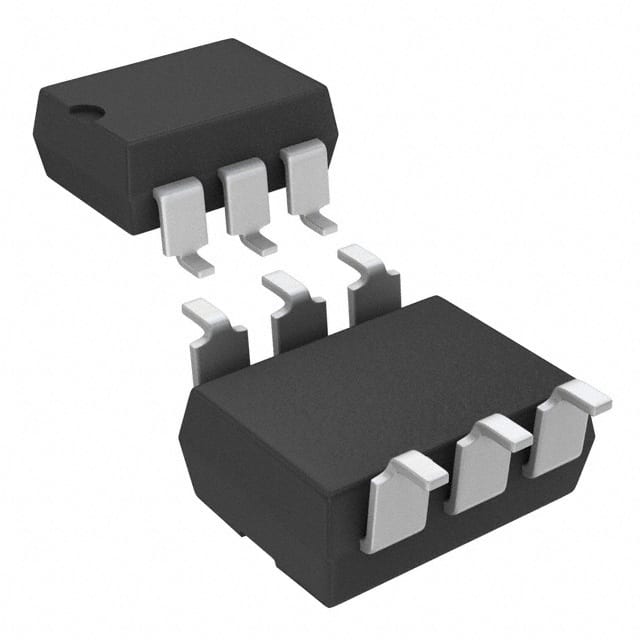

The Vishay Dale IL4208-X007T is an optocoupler featuring a phototriac output, suitable for controlling AC loads. It provides high isolation voltage of 5300 Vrms, making it ideal for interfacing microcontrollers with high-voltage circuits.
Key electrical specifications include a maximum continuous output current of 300 mA and an off-state voltage (VDRM) of 600 V. The device also offers a high static dV/dt of 10 kV/µs and a turn-on time of 35 µs. The input side requires a low trigger current of typically 1 mA.
This optocoupler is housed in a 6-SMD, Gull Wing package and is designed for surface mounting. It operates within a temperature range of -55°C to 100°C. The IL4208-X007T is suitable for applications such as solid-state relays, industrial controls, and consumer appliances.
Agency approvals include CQC, CSA, cUR, and UR, indicating its suitability for various international standards. The device is available in a tape and reel package.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 5300 Vrms.
The maximum continuous output current is 300 mA.
The off-state output voltage is 600 V.
The operating temperature range is -55°C to 100°C.
The package type is 6-SMD, Gull Wing.
The RoHS status is RoHS3 Compliant.
