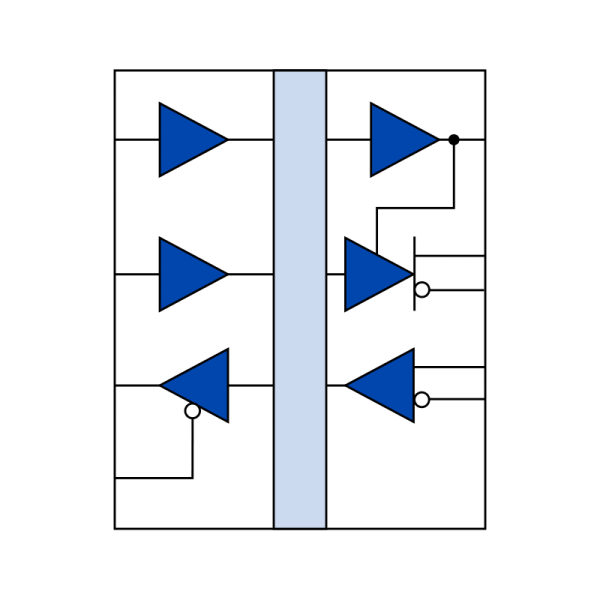

The IL3522E from NVE Corporation is a high-speed, galvanically isolated differential bus transceiver utilizing spintronic Giant Magnetoresistance (GMR) technology. It is designed for bidirectional data communication on balanced transmission lines, supporting RS485 and RS422 protocols.
Key electrical specifications include a 40 Mbps data rate, 20 ns propagation delay, and 1 ns pulse skew. The device provides 6 kV RMS reinforced isolation and features 15 kV bus ESD protection. It operates over a wide temperature range of -40 °C to +85 °C and supports 3 V to 5 V power supplies.
The IL3522E delivers an exceptional 2.3 V differential output into a 54 Ω load, ensuring data integrity over longer cable lengths. It is also compatible with 3 V supplies for easy interfacing with microcontrollers. Current limiting and thermal shutdown features protect against output short circuits and bus contention.
Packaged in a 16-pin JEDEC-standard wide-body SOIC package with True 8™ mm creepage, the IL3522E is suitable for surface mount applications. It is IEC 60747-17 (VDE 0884-17) certified and UL 1577 recognized, making it ideal for demanding industrial and medical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 Mbps.
6 kV RMS reinforced isolation.
-40°C to +85°C.
SOIC16WB surface-mount package.
IEC 60747-17 (VDE 0884-17) and UL 1577 recognized.
20 ns.
50 kV/μs typical, 30 kV/μs minimum.
