| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 2nd Connector | |
| Approval Agency Marking | |
| Approved Countries | |
| Color | |
| Cord Type | |
| Current Rating (Amps) | |
| Features | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Number of Conductors | |
| Operating Temperature | |
| Shielding | |
| Style | |
| Voltage Rating | |
| Wire Gauge |

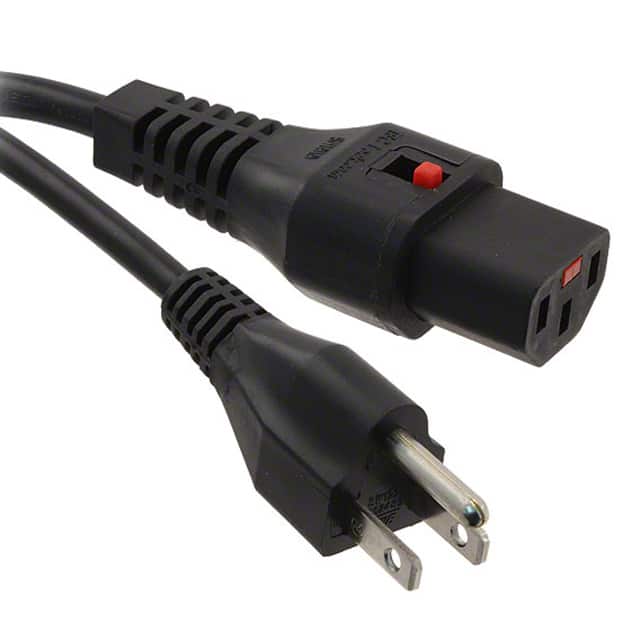

The Schaffner IL13-US1-SVT-3100-183 is a power cord with a locking system designed to prevent accidental disconnection from IEC C14 inlets. It features a NEMA 5-15P plug on the line side and an IEC 320-C13 connector on the load side. The cable is 6 feet (1.83 meters) long, 18 AWG, with three conductors, and rated for 10A at 125VAC with a frequency of 50/60 Hz. The cord is type SVT, unshielded, black, and has a protection class I rating.
The locking system provides a typical tensile force of 200N, making it suitable for applications where vibration or accidental pulling is a concern. The product is approved by UL and cUL for use in Canada and the United States. Operating temperature range is -25°C to 70°C, and the connector meets IP20 protection category. The plug and connector materials have a flammability rating of UL 94 V-2 or better.
Typical applications include data centers, industrial equipment, medical devices, and broadcasting stations. This power cord is a retrofit solution for any device with an IEC C14 inlet, and is compatible with Schaffner IEC inlet filters.
125VAC.
-25°C to 70°C.
Yes, RoHS3 compliant (unverified, low confidence).
NEMA 5-15P on the line side and IEC 320-C13 on the load side.
10A.
6 feet (1.83 meters).
Yes, it features a locking system for secure connection with a typical tensile force of 200N.
