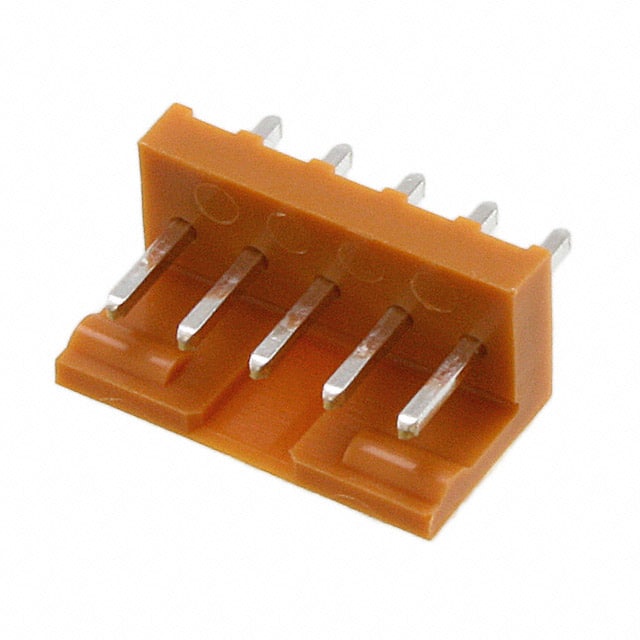

IL-G-5P-S3T2-SA JAE Electronics IL-G-5P-S3T2-SA is a 5-position, single row, 2.5mm pitch header connector. It features through-hole mounting, shrouded design with friction lock, and tin-plated brass contacts.
Mfr Part #:

IL-G-5P-S3T2-SA

Available from 1 distributors
Mfr Name: JAE Electronics
JAE Electronics
JAE Electronics IL-G-5P-S3T2-SA is a 5-position, single row, 2.5mm pitch header connector. It features through-hole mounting, shrouded design with friction lock, and tin-plated brass contacts.
✓ Total Stock: 351 pcs
$ Price Range: $0.23 - $0.44

IL-G-5P-S3T2-SA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
351 pcs
On Request
351 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IL-G-5P-S3T2-SA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

IL-G-5P-S3T2-SA Description

Short technical summary and product information.

The IL-G-5P-S3T2-SA is a 5-position, single row header connector from JAE Electronics' IL-G series. It features a 2.50mm pitch and is designed for board-to-cable/wire applications. The connector uses through-hole mounting with solder termination for secure attachment to PCBs.



The header is shrouded with a single wall and includes a friction lock for reliable mating. It has square, tin-plated brass contacts with a mating contact length of 4.00mm and an overall contact length of 9.60mm. The insulation is made of polyamide (PA66/Nylon 6/6) with a brown color and a height of 7.10mm.



Electrical rating is 3A per contact, and the operating temperature range is -40°C to 85°C. The insulation material has a UL94 V-0 flammability rating. The connector is compliant with RoHS3 and REACH, with an MSL of 1 (unlimited).

IL-G-5P-S3T2-SA Quick Information

Product Type: Header Connector
Series: IL-G
Canonical Name: JAE Electronics IL-G Series Header, 5 Position, 2.5mm Pitch, Through Hole, Shrouded, Friction Lock
Subcategory: Shrouded Header with Friction Lock

IL-G-5P-S3T2-SA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IL-G-5P-S3T2-SA Estimated Pricing

Qty Low High
1+ $0.44 $0.44
10+ $0.37 $0.37
100+ $0.32 $0.32
250+ $0.28 $0.28
1,000+ $0.27 $0.27
2,500+ $0.26 $0.26
5,000+ $0.24 $0.24
10,000+ $0.23 $0.23

Estimated market price range - modelled values for guidance only, not live distributor offers.

IL-G-5P-S3T2-SA Features

  • 5-position single row header connector.
  • 2.5mm pitch for compact designs.
  • Through-hole mounting for secure attachment.
  • Shrouded design with friction lock.
  • Tin-plated brass contacts for reliability.

IL-G-5P-S3T2-SA Applications

  • Ideal for board-to-cable connections.
  • Used in industrial control systems.
  • Suitable for automotive applications.
  • Common in consumer electronics.
  • Applicable in power supply units.

IL-G-5P-S3T2-SA FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the IL-G-5P-S3T2-SA have?

5 positions.

What is the pitch of this connector?

2.50mm (0.098").

What is the current rating per contact?

3A per contact.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 85°C.

What is the insulation material?

Polyamide (PA66), Nylon 6/6.

What is the flammability rating?

UL94 V-0.
