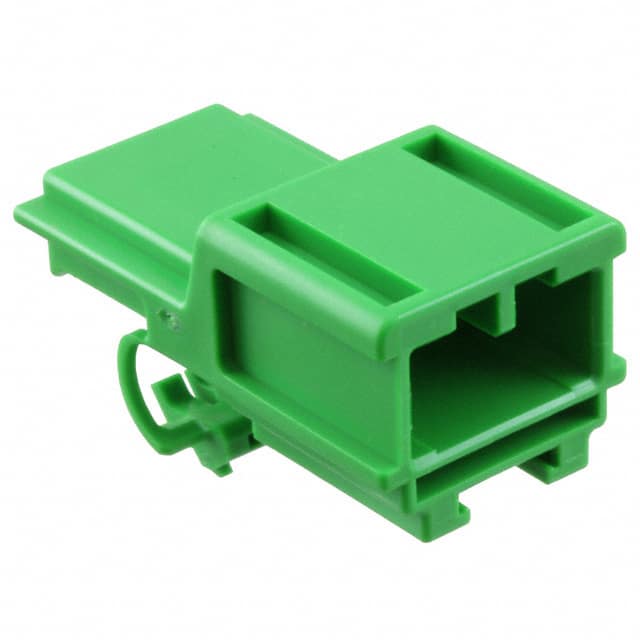

The IL-AG5-5P-S3C1 is a rectangular connector plug housing manufactured by JAE Electronics. It accommodates 5 male pin contacts in a single row with a 2.50mm pitch, making it suitable for compact wire-to-wire or wire-to-board applications. The housing is designed for free hanging (in-line) mounting and uses crimp termination for secure and reliable connections.
Electrical specifications include a current rating of 7A typical, contact resistance of 10 mOhm maximum, and insulation resistance of 1000 MOhm minimum. The operating temperature range is -40°C to 85°C, allowing use in a variety of environments. The housing is green in color and is made of polarized material to prevent misalignment during mating.
This housing is part of the IL-AG5 series and requires separate crimp contacts (sold separately). It is commonly used in automotive, industrial, and consumer electronics applications where a compact and reliable interconnect solution is needed. The polarized design ensures correct orientation and prevents mismating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
| 10+ | $0.83 | $0.83 |
| 25+ | $0.74 | $0.74 |
| 100+ | $0.71 | $0.71 |
| 250+ | $0.66 | $0.66 |
| 500+ | $0.63 | $0.63 |
| 1,000+ | $0.60 | $0.60 |
| 2,000+ | $0.56 | $0.56 |
| 5,000+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IL-AG5-5P-S3C1 has 5 positions in a single row.
The pitch is 2.50mm (0.098 inches).
The typical current rating is 7A.
It is designed for free hanging (in-line) mounting.
The operating temperature range is -40°C to 85°C.
It supports crimp termination for the contacts.
