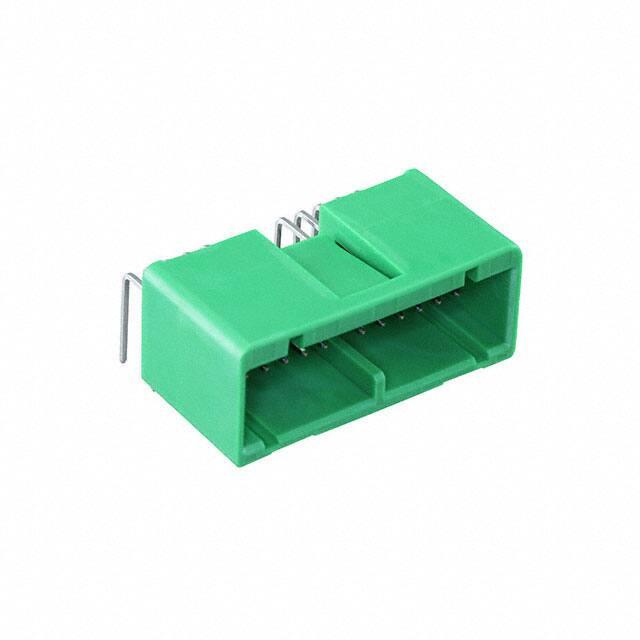

The IL-AG5-22P-D3L2 is a 22-position, 2-row, right-angle header with male pins from JAE Electronics. It features a 2.50mm pitch and 3.00mm row spacing, designed for board-to-cable/wire connections. The connector is shrouded with a 4-wall design and push-pull fastening type. Contacts are made of brass with tin plating, and the insulator is green polybutylene terephthalate (PBT). The header is rated for 3A per contact and operates over -40°C to 85°C. It includes a board guide feature for alignment. Mounting is through-hole, right-angle with solder termination. This connector is suitable for various applications requiring reliable wire-to-board connections in industrial or automotive environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.87 | $2.87 |
| 10+ | $2.44 | $2.44 |
| 100+ | $2.07 | $2.07 |
| 546+ | $1.84 | $1.84 |
| 1,092+ | $1.74 | $1.74 |
| 2,730+ | $1.67 | $1.67 |
| 5,460+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions.
2.50mm (0.098").
3A per contact.
Through hole, right angle.
-40°C to 85°C.
Brass contacts with tin plating.
Green polybutylene terephthalate (PBT).
