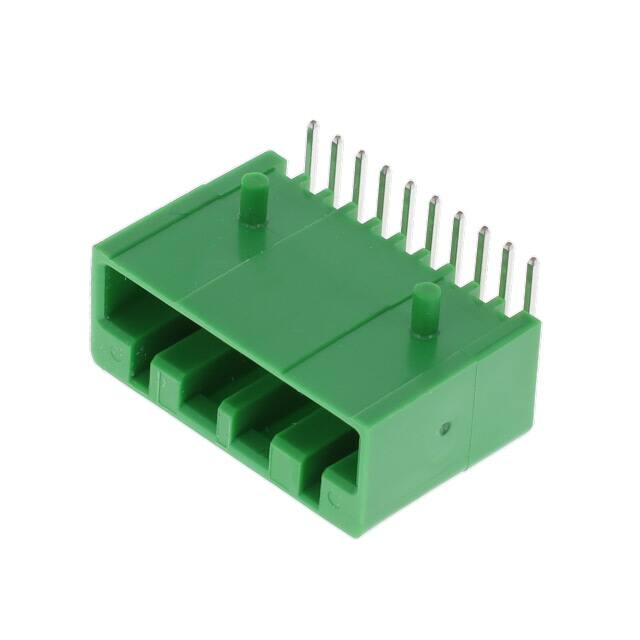

The JAE Electronics IL-AG5-10P-S3L2 is a 10-position, single-row, shrouded header designed for board-to-cable/wire applications. It features a 2.5mm pitch and a through hole, right angle mounting style with solder termination.
This connector is rated for 3A per contact and operates over a temperature range of -40°C to 85°C. The contacts are made of brass with a tin finish, and the insulator is green polybutylene terephthalate (PBT). The header includes a board guide feature and a push-pull fastening type.
The shrouded 4-wall design provides protection for the male pins and helps prevent misalignment during mating. The polarized version ensures correct orientation, and the double locking mechanism prevents accidental disconnection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 10+ | $1.21 | $1.21 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.15 | $1.15 |
| 250+ | $1.05 | $1.05 |
| 500+ | $0.89 | $0.89 |
| 952+ | $0.85 | $0.85 |
| 2,856+ | $0.80 | $0.80 |
| 5,712+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in a single row.
2.5mm.
3A per contact.
Through hole, right angle.
-40°C to 85°C.
Yes, it is a shrouded 4-wall header.
Tin.
