Mfr Part #:

IKW50N65EH5

Mfr Name: Infineon

The Infineon IKW50N65EH5 is a high-speed IGBT from the TRENCHSTOP™ 5 technology family. It offers a 650V breakdown voltage and 50A collector current, suitable for demanding power applications.

✓ Total Stock: 2,097 pcs

$ Price Range: $3.63

IKW50N65EH5 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,477 pcs On Request	1477 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	620 pcs On Request	620 pcs	On Request	1	On Request	On Request	14+	On Request	On Request

IKW50N65EH5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Gate Charge	Low
Mounting Type	Through Hole
SVHC Present	Not Present

View Similar Products (0)

IKW50N65EH5 Description

Short technical summary and product information.

The Infineon IKW50N65EH5 is a high-speed Insulated Gate Bipolar Transistor (IGBT) utilizing TRENCHSTOP™ 5 technology. This component is co-packed with a RAPID 1 fast and soft antiparallel diode, enhancing its performance in power switching applications.

Key electrical specifications include a breakdown voltage of 650V and a continuous collector current of 50A. The device is designed for best-in-class efficiency in both hard switching and resonant topologies. It also features low gate charge (QG) for improved switching characteristics.

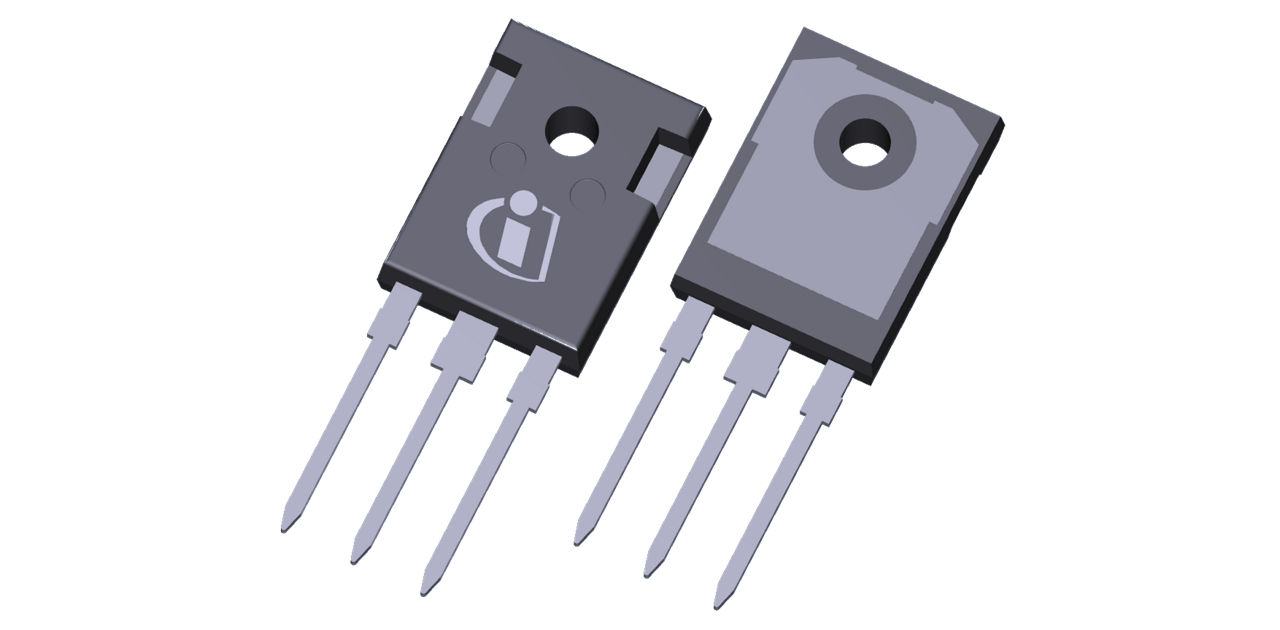

The IGBT is housed in a standard PG-TO247-3 package, designed for through-hole mounting. Its maximum junction temperature is rated at 175°C, ensuring reliability under demanding thermal conditions. The component is qualified according to JEDEC standards for target applications.

Potential applications for the IKW50N65EH5 include uninterruptible power supplies (UPS), solar converters, welding converters, and mid to high range switching frequency converters. It serves as a plug-and-play replacement for previous generation IGBTs.

IKW50N65EH5 Quick Information

Product Type: IGBT

Series: High speed 5

Canonical Name: Infineon IKW50N65EH5 IGBT

Subcategory: Single IGBT

IKW50N65EH5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb-free lead plating

IKW50N65EH5 Estimated Pricing

Qty	Low	High
1+	$3.63	$3.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

IKW50N65EH5 Features

650V breakdown voltage rating.
50A continuous collector current.
TRENCHSTOP™ 5 IGBT technology.
Integrated RAPID 1 antiparallel diode.
PG-TO247-3 through-hole package.

IKW50N65EH5 Applications

Suitable for uninterruptible power supplies.
Used in solar power converters.
Applicable for welding converters.
Ideal for high frequency converters.

IKW50N65EH5 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the breakdown voltage of the IKW50N65EH5?

The breakdown voltage is 650 V.

What is the continuous collector current for the IKW50N65EH5?

The continuous collector current is 50 A.

What is the maximum junction temperature for this IGBT?

The maximum junction temperature is 175°C.

What package type is the IKW50N65EH5 supplied in?

It is supplied in the PG-TO247-3 package.

Is the IKW50N65EH5 RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the IKW50N65EH5?

The Moisture Sensitivity Level is 1 Unlimited.
