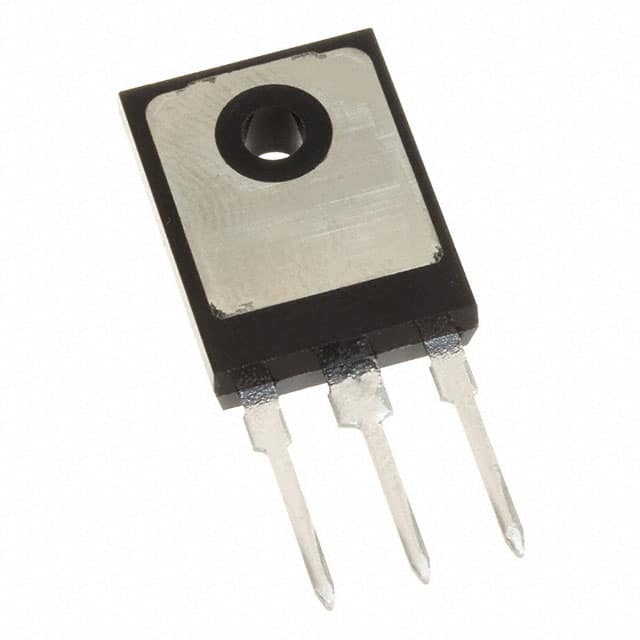

The Infineon IKW50N60DTPXKSA1 is a 600V, 80A Trench Field Stop IGBT from the TRENCHSTOP Performance series. It is designed for high efficiency power conversion applications such as drives, solar inverters, and uninterruptible power supplies.
Key electrical specifications include a maximum collector-emitter voltage of 600V, a maximum collector current of 80A, and a maximum power dissipation of 319.2W. The device features a low typical collector-emitter saturation voltage of 1.6V at 25°C and a maximum of 1.8V at 15V gate voltage and 50A collector current. Switching performance is characterized by typical turn-on energy of 1.53mJ and turn-off energy of 0.85mJ under test conditions of 400V, 50A, 7 Ohm gate resistance, and 15V gate drive.
The IGBT is packaged in a through-hole TO-247-3 (PG-TO247-3) package, suitable for robust industrial mounting. It operates over a junction temperature range of -40°C to 175°C. The device is RoHS compliant and features Pb-free lead plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.92 | $3.92 |
| 10+ | $2.17 | $2.17 |
| 100+ | $1.77 | $1.77 |
| 480+ | $1.47 | $1.47 |
| 1,200+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (VCE) is 600V.
The maximum collector current (IC) is 80A.
The IGBT is in a TO-247-3 (PG-TO247-3) through-hole package.
The operating junction temperature (Tj) range is -40°C to 175°C.
Yes, the device is RoHS3 compliant and has Pb-free lead plating.
The typical Vce(sat) is 1.6V at Tvj=25°C.
The maximum power dissipation (PD) is 319.2W.
