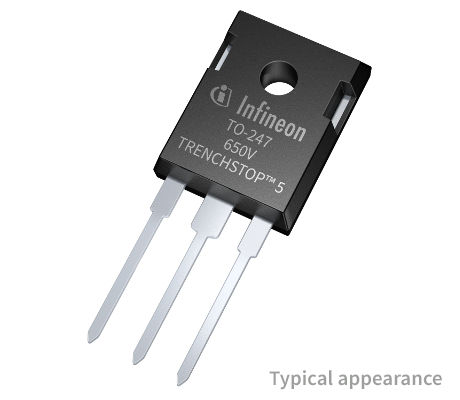

IKW40N120T2 The Infineon IKW40N120T2 is a TRENCHSTOP™ 2nd generation IGBT designed for 1200V applications. It features a TO-247 package and a 40A DC collector current rating.
Mfr Part #:

IKW40N120T2

Available from 4 distributors
Mfr Name: Infineon
Infineon
The Infineon IKW40N120T2 is a TRENCHSTOP™ 2nd generation IGBT designed for 1200V applications. It features a TO-247 package and a 40A DC collector current rating.
✓ Total Stock: 11,579 pcs
$ Price Range: $3.63

IKW40N120T2 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,333 pcs
On Request
7333 pcs On Request 1 On Request On Request 21+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,400 pcs
On Request
2400 pcs On Request 1 On Request On Request 22+23+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,696 pcs
On Request
1696 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request 1738+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IKW40N120T2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Power Dissipation
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

IKW40N120T2 Description

Short technical summary and product information.

The Infineon IKW40N120T2 is a high-performance IGBT from the TRENCHSTOP™ 2nd Generation series, designed for 1200V applications. This component offers a 40A DC collector current at 110°C and a 752A rating at 25°C, with a pulsed collector current capability of 160A.



Key electrical characteristics include a collector-emitter saturation voltage of 1.75V typical at 25°C and 40A, and a gate-emitter threshold voltage of 5.8V typical. The device also incorporates a soft, fast recovery anti-parallel Emitter Controlled HE Diode.



With a maximum operating junction temperature of 175°C and a low thermal resistance of 0.31 K/W (junction-to-case), the IKW40N120T2 is suitable for demanding applications. It is housed in a PG-TO-247-3 package, designed for through-hole mounting.



This IGBT is designed for applications such as frequency converters and uninterrupted power supplies. It offers easy paralleling capability due to a positive temperature coefficient in VCE(sat), low EMI, and low gate charge.

IKW40N120T2 Quick Information

Product Type: IGBT
Series: TRENCHSTOP™ 2nd Generation
Canonical Name: Infineon IKW40N120T2 IGBT
Subcategory: IGBTs - Single

IKW40N120T2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-free lead plating

IKW40N120T2 Estimated Pricing

Qty Low High
1+ $3.63 $3.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

IKW40N120T2 Features

  • 1200V collector-emitter voltage rating.
  • 40A DC collector current capability.
  • TRENCHSTOP™ 2nd generation technology.
  • Soft, fast recovery emitter controlled diode.
  • PG-TO-247-3 package for through-hole mounting.

IKW40N120T2 Applications

  • Designed for frequency converters.
  • Suitable for uninterrupted power supplies.
  • Easy paralleling capability.
  • Low EMI and gate charge.

IKW40N120T2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage for the IKW40N120T2?

The maximum collector-emitter voltage is 1200V.

What is the typical collector current at 25°C for the IKW40N120T2?

The typical DC collector current at 25°C is 752A.

What is the typical collector current at 110°C for the IKW40N120T2?

The typical DC collector current at 110°C is 40A.

What is the operating junction temperature range for the IKW40N120T2?

The operating junction temperature range is -40°C to 175°C.

What package type is the IKW40N120T2 supplied in?

The IKW40N120T2 is supplied in a PG-TO-247-3 package.

Is the IKW40N120T2 RoHS compliant?

The RoHS Status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the IKW40N120T2?

The Moisture Sensitivity Level is 1 Unlimited.
