Mfr Part #:

IKW20N60T

Mfr Name: Infineon

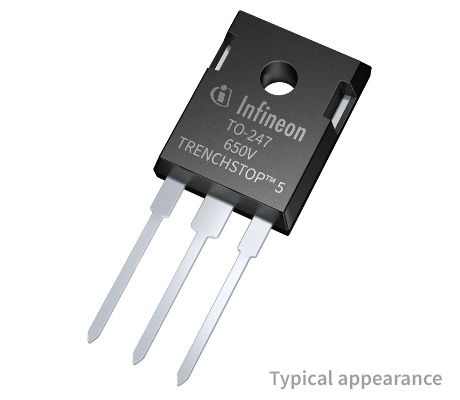

The Infineon IKW20N60T is a 600V IGBT designed for frequency converters and uninterruptible power supplies. It features low VCE(sat) and a fast recovery diode.

✓ Total Stock: 1,214 pcs

$ Price Range: $3.63

IKW20N60T Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	1,054 pcs On Request	1054 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	160 pcs On Request	160 pcs	On Request	1	On Request	On Request	10+	On Request	On Request

IKW20N60T Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Input Capacitance	11nF
Lead Style	Through Hole
Mounting Type	Through Hole
Power Dissipation	166W
Storage Temperature	-55 to 150°C
Tape & Reel	No

View Similar Products (0)

IKW20N60T Description

Short technical summary and product information.

The Infineon IKW20N60T is a high-performance Insulated Gate Bipolar Transistor (IGBT) utilizing TRENCHSTOP™ and Fieldstop technology. It is designed for demanding applications such as frequency converters and uninterruptible power supplies (UPS).

Key electrical characteristics include a maximum collector-emitter voltage of 600V and a DC collector current rating of 41A at 25°C, derating to 28A at 100°C. The device boasts a low typical collector-emitter saturation voltage (VCE(sat)) of 1.5V at 25°C, contributing to reduced power losses. It also features a very soft, fast recovery anti-parallel Emitter Controlled HE diode.

The IGBT operates within a junction temperature range of -40°C to 175°C. It is housed in a PG-TO247-3 package, suitable for through-hole mounting. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

This IGBT offers high ruggedness and temperature-stable behavior, making it a reliable choice for power electronics designs requiring efficient switching and robust performance.

IKW20N60T Quick Information

Product Type: IGBT

Series: TRENCHSTOP™

Canonical Name: IKW20N60T IGBT

Subcategory: Single

IKW20N60T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: true

IKW20N60T Estimated Pricing

Qty	Low	High
1+	$3.63	$3.63

Estimated market price range - modelled values for guidance only, not live distributor offers.

IKW20N60T Features

600V collector-emitter voltage rating.
Low VCE(sat) of 1.5V typical.
Maximum junction temperature of 175°C.
Fast recovery anti-parallel diode.
PG-TO247-3 package for through-hole mounting.

IKW20N60T Applications

Designed for frequency converters.
Suitable for uninterruptible power supplies.
Used in power electronics applications.

IKW20N60T FAQs

7 frequently asked questions generated from this part’s specifications.

What is the collector-emitter voltage rating of the IKW20N60T?

The maximum collector-emitter voltage is 600V at Tj ≥ 25°C.

What is the package type of the Infineon IKW20N60T?

The package is PG-TO247-3, with through-hole mounting.

What is the operating junction temperature range?

The operating junction temperature range is -40°C to 175°C.

What is the maximum DC collector current at 25°C?

The maximum DC collector current is 41A at TC = 25°C.

What is the typical VCE(sat) at 25°C?

The typical collector-emitter saturation voltage is 1.5V at VGE = 15V, IC = 20A, Tj = 25°C.

What is the short circuit withstand time?

The short circuit withstand time is 5µs under VGE = 15V, VCC ≤ 400V, Tj ≤ 150°C.

What is the power dissipation at 25°C?

The maximum power dissipation is 166W at TC = 25°C.
