| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | 22+23+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Gate Charge | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Tape & Reel |

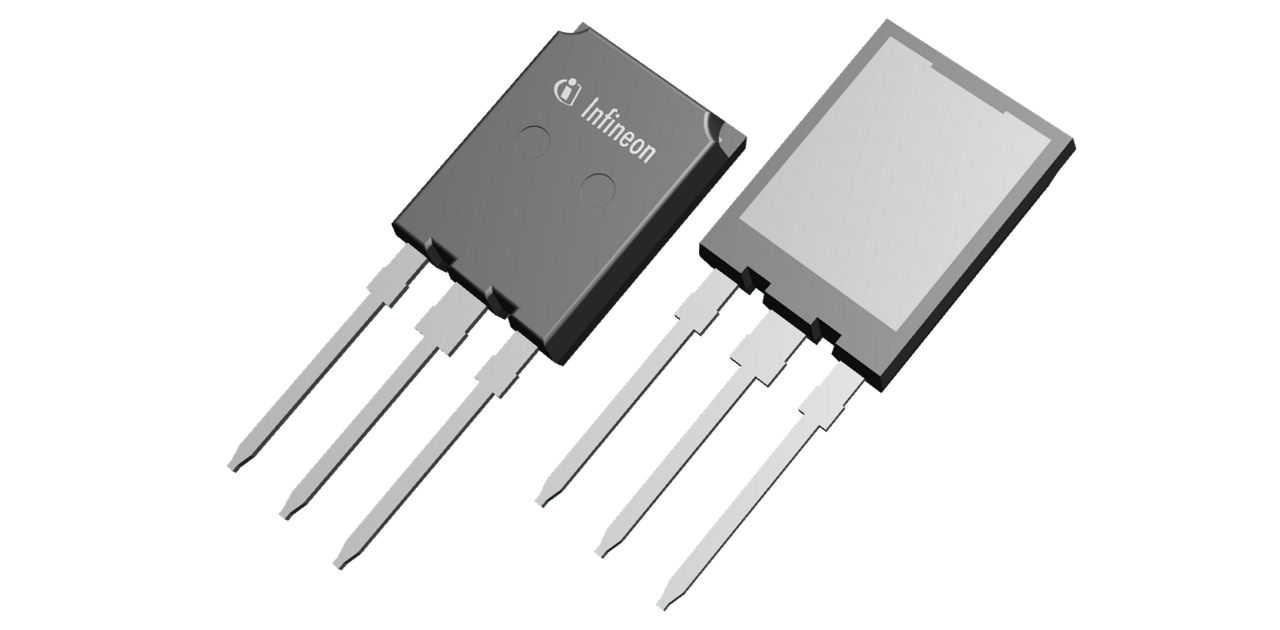

The Infineon IKQ40N120CH3 is a high-speed switching IGBT from Infineon's third-generation series, built with Highspeed3 technology. This technology provides high efficiency in hard switching and resonant topologies, along with a 10µsec short circuit withstand time at 175°C junction temperature. It features low switching losses and is copacked with a soft, fast recovery full current rated anti-parallel Emitter Controlled diode.
Key electrical specifications include a 1200V collector-emitter voltage and a 40A collector current. The typical collector-emitter saturation voltage is 2V at 25°C. The maximum junction temperature is rated at 175°C. The device is designed for easy paralleling due to its positive temperature coefficient in VCEsat.
This IGBT is suitable for industrial applications such as UPS, chargers, energy storage, three-level solar string inverters, and welding. It is qualified for industrial applications according to JEDEC47/20/22 tests. The component is supplied in a PG-TO247-3-46 package, suitable for through-hole mounting.
The IKQ40N120CH3 is RoHS3 compliant and features Pb-free lead plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.63 | $3.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage is 1200V.
The continuous collector current rating is 40A.
The typical collector-emitter saturation voltage is 2V at 25°C.
The maximum junction temperature is 175°C.
The package type is PG-TO247-3-46.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
