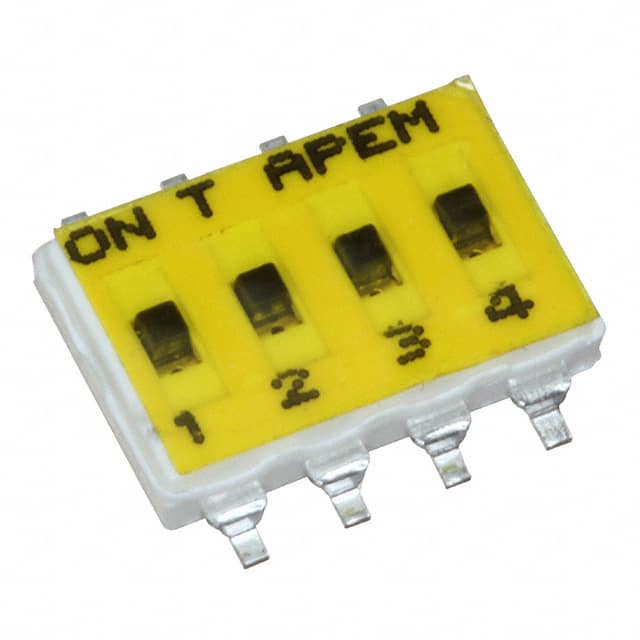

IKN0403000 The APEM Inc. IKN0403000 is a surface mount SPST DIP switch designed for 24VDC applications. It features a 2.54mm pitch and 100mA switching current.
Mfr Part #:

IKN0403000

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. IKN0403000 is a surface mount SPST DIP switch designed for 24VDC applications. It features a 2.54mm pitch and 100mA switching current.
✓ Total Stock: 9 pcs
$ Price Range: $0.75

IKN0403000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IKN0403000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Level
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Material
Current Rating (Amps)
Features
Height Above Board
Insulation Resistance
Mounting Type
Number of Positions
Operating Temperature
Pitch
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
Washable
View Similar Products (0)

IKN0403000 Description

Short technical summary and product information.

The APEM Inc. IKN0403000 is an ultra-compact, low-profile SPST DIP switch suitable for surface mounting. It operates with a 24VDC voltage rating and a switching current of 100mA. The switch features a pitch of 2.54mm (0.100 inches) and a height above the board of 2.85mm (0.112 inches).



Constructed with a UL94-VO thermoplastic case and black thermoplastic actuators, this DIP switch utilizes gold-plated beryllium copper moving contacts and gold over nickel over bronze stationary contacts for reliable performance. The terminals are tin-plated over a nickel barrier, and the termination style is gull wing. It offers an electrical life of 2000 cycles minimum and an operating temperature range of -40°C to +100°C.



This washable switch is designed for reflow soldering and comes in tape and reel packaging for automated assembly. The IK series DIP switches are known for their low profile and self-cleaning wiping contacts.

IKN0403000 Quick Information

Product Type: DIP Switch
Series: IK
Canonical Name: APEM Inc. IKN0403000 SPST DIP Switch

IKN0403000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IKN0403000 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

IKN0403000 Features

  • Ultra-compact, low-profile DIP switch.
  • Surface mount with gull wing termination.
  • 100mA switching current at 24VDC.
  • 2.54mm pitch and 2.85mm height.
  • Tape and reel packaging available.

IKN0403000 Applications

  • Ideal for automated PCB assembly.
  • Suitable for compact electronic designs.
  • Used in low-power switching applications.
  • Reliable for temperature-sensitive environments.

IKN0403000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the IKN0403000 DIP switch?

The operating voltage for the IKN0403000 DIP switch is 24VDC.

What is the current rating of the IKN0403000 DIP switch?

The current rating for the IKN0403000 DIP switch is 100mA.

What is the operating temperature range for this DIP switch?

The operating temperature range for this DIP switch is -40°C to +100°C.

Is the IKN0403000 DIP switch RoHS compliant?

The IKN0403000 DIP switch is RoHS3 Compliant.

What is the pitch of the IKN0403000 DIP switch?

The pitch of the IKN0403000 DIP switch is 2.54mm (0.100").

What type of mounting does the IKN0403000 DIP switch use?

The IKN0403000 DIP switch uses surface mount.

How is the IKN0403000 DIP switch packaged?

The IKN0403000 DIP switch is packaged in reels of 1,000 units and supports tape and reel.
