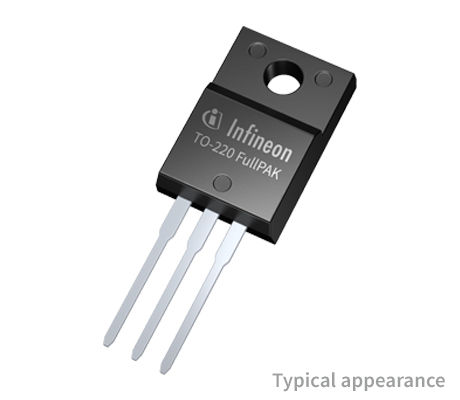

The Infineon IKA15N60T is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for 600V applications. It utilizes TRENCHSTOP™ and Fieldstop technology, offering very tight parameter distribution, high ruggedness, and stable temperature behavior.
Key electrical characteristics include a collector-emitter voltage (Vce) of 600V and a continuous collector current (Ic) of 18.3A at 25°C case temperature, and 10.6A at 100°C. The device boasts a low typical collector-emitter saturation voltage (VCE(sat)) of 1.5V at 25°C and a maximum junction temperature (Tjmax) of 175°C. It also features a short circuit withstand time of 5µs.
This IGBT is suitable for applications such as air conditioning and inverters. It comes in a PG-TO220-3 (FullPAK) package, designed for through-hole mounting. The component is Pb-free and RoHS compliant.
Additional specifications include a power dissipation of 35.7W at 25°C, thermal resistance values for junction-to-case (RthJC) of 4.2 K/W for the IGBT and 4.8 K/W for the diode, and a junction-to-ambient thermal resistance (RthJA) of 80 K/W.
