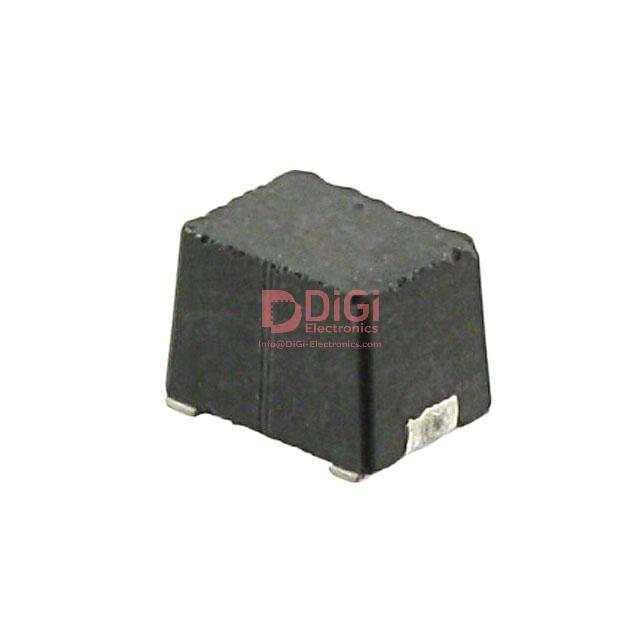

IHSM5832RF221L The Vishay Dale IHSM5832RF221L is a fixed inductor with 220µH inductance and a 690mA current rating. It features a surface mount package.
Mfr Part #:

IHSM5832RF221L

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale IHSM5832RF221L is a fixed inductor with 220µH inductance and a 690mA current rating. It features a surface mount package.
✓ Total Stock: 500 pcs

IHSM5832RF221L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IHSM5832RF221L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Width
View Similar Products (0)

IHSM5832RF221L Description

Short technical summary and product information.

This Vishay Dale IHSM5832RF221L is a fixed inductor designed for surface mount applications. It offers an inductance value of 220µH with a tolerance of ±15% and a maximum DC resistance of 1.1 Ohm.



The component has a current rating of 690mA and operates within a temperature range of -55°C to 125°C. The inductor is constructed with a ferrite material and is unshielded.



Key mechanical dimensions include a height of 7.24mm (0.285"), a length of 16.26mm (0.640"), and a width of 8.13mm (0.320"). The package type is nonstandard.



Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are unverified.

IHSM5832RF221L Quick Information

Product Type: Fixed Inductor
Series: IHSM5832
Canonical Name: Vishay Dale IHSM5832RF221L Fixed Inductor
Subcategory: Fixed Inductor

IHSM5832RF221L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IHSM5832RF221L Features

  • 220µH inductance with ±15% tolerance.
  • 690mA current rating for power applications.
  • 1.1 Ohm maximum DC resistance.
  • Surface mount for automated assembly.
  • Ferrite material construction.

IHSM5832RF221L Applications

  • Used in RF filtering circuits
  • Suitable for power supply filtering
  • Applied in signal conditioning
  • Ideal for compact electronic designs

IHSM5832RF221L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of the IHSM5832RF221L?

The inductance value is 220 microhenries.

What is the maximum DC resistance of this inductor?

The maximum DC resistance is 1.1 ohms.

What is the current rating of the IHSM5832RF221L?

The current rating is 690 milliamps.

What is the operating temperature range?

It operates from -55°C to 125°C.

What type of mounting does this inductor use?

It uses surface-mount mounting.

What material is the core made of?

The core is made of ferrite.
