| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
475 pcs
|
475 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Incremental Current | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

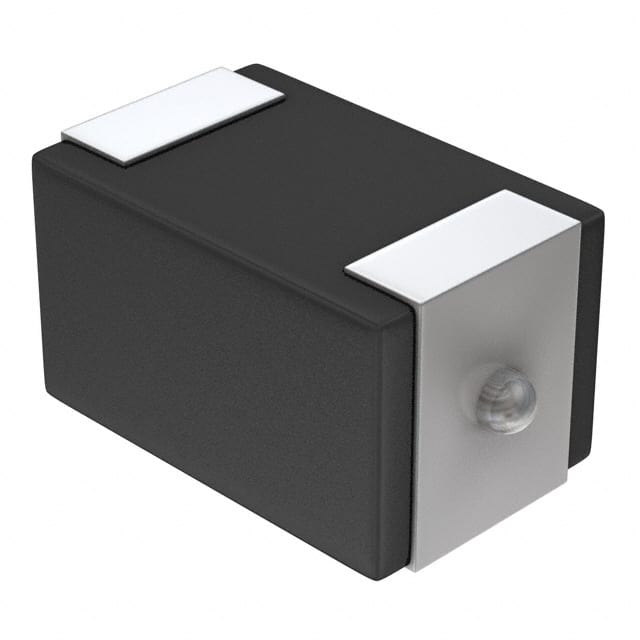

This Vishay Dale IHSM3825ER2R2L is a wirewound molded, surface mount fixed inductor designed for high current applications. It offers an inductance value of 2.2µH with a tolerance of ±15% and a maximum DC resistance of 31mΩ. The rated current is 3.61A, with an incremental current of 2.62A at which inductance decreases by 5%.
The inductor operates within a temperature range of -55°C to 125°C. Its construction features a high resistivity ferrite core and an epoxy encapsulant, providing superior environmental protection and moisture resistance. The terminals are plated with 100% Sn over Ni, making them compatible with infrared or conventional reflow soldering methods.
With dimensions of 11.18mm L x 6.35mm W x 5.72mm H, this component is pick and place compatible. It is suitable for applications such as power line noise filters, filters for switching regulated power supplies, DC/DC converters, SCR and triac controls, and RFI suppression.
The inductance value is 2.2 µH.
The tolerance is ±15%.
The maximum DC resistance is 31mΩ.
The rated current is 3.61 A.
The operating temperature range is -55°C to 125°C.
The dimensions are 11.18mm L x 6.35mm W x 5.72mm H.
The core material is ferrite.
