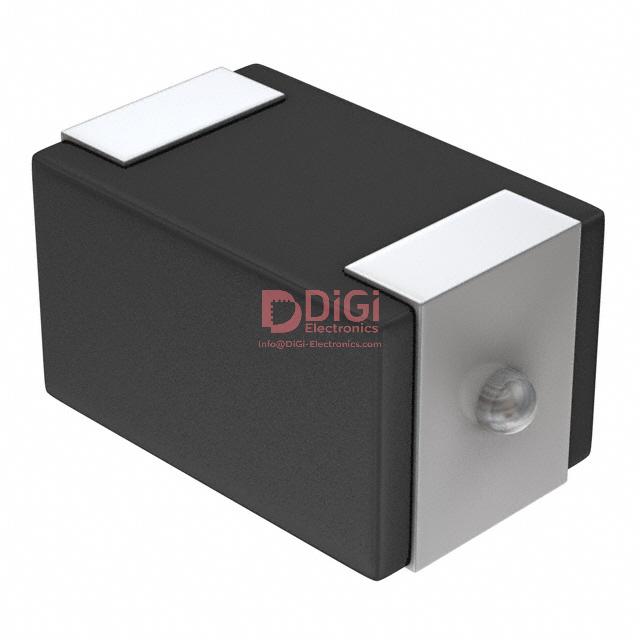

IHLW5050CEER4R7M01 The Vishay Dale IHLW5050CEER4R7M01 is a shielded, surface mount fixed inductor with 4.7µH inductance and a 10A current rating. It features a low DCR of 15mΩ Max.
Mfr Part #:

IHLW5050CEER4R7M01

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale IHLW5050CEER4R7M01 is a shielded, surface mount fixed inductor with 4.7µH inductance and a 10A current rating. It features a low DCR of 15mΩ Max.
✓ Total Stock: 55 pcs

IHLW5050CEER4R7M01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IHLW5050CEER4R7M01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency Range
Height
Inductance
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Shielding
Tape & Reel
Tolerance
Width
View Similar Products (0)

IHLW5050CEER4R7M01 Description

Short technical summary and product information.

The Vishay Dale IHLW5050CEER4R7M01 is a high-performance fixed inductor designed for demanding applications. It offers a shielded construction for reduced electromagnetic interference and a compact, nonstandard package suitable for surface mounting.



Key electrical specifications include an inductance of 4.7µH with a tolerance of ±20% at 100 kHz, 0.25 V, 0 A. The inductor boasts a low DC resistance (DCR) of 15mΩ Max at 25°C, contributing to efficient power conversion. It is rated for a DC current of 10A and has a saturation current of 24A, allowing it to handle significant current spikes without saturation.



This inductor operates within a wide temperature range of -55°C to +125°C, making it suitable for various environmental conditions. The datasheet indicates a rated operating voltage of 75V and a frequency range up to 5.0 MHz. Its dimensions are 12.70mm L x 12.70mm W with a height of 3.50mm.



Applications for this component include high current POL converters, low profile power supplies, and battery-powered devices where space and performance are critical.

IHLW5050CEER4R7M01 Quick Information

Product Type: Fixed Inductor
Series: IHLW5050CE
Canonical Name: Vishay Dale IHLW5050CEER4R7M01 Fixed Inductor

IHLW5050CEER4R7M01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IHLW5050CEER4R7M01 Features

  • Shielded construction for reduced EMI.
  • High current rating up to 10A.
  • Low DCR of 15mΩ Max.
  • Wide operating temperature range.
  • Surface mountable nonstandard package.

IHLW5050CEER4R7M01 Applications

  • Suitable for high current POL converters.
  • Ideal for low profile power supplies.
  • Used in battery powered devices.
  • Designed for DC/DC converters.

IHLW5050CEER4R7M01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the IHLW5050CEER4R7M01?

The inductance is 4.7 µH with a tolerance of ±20% at 100 kHz, 0.25 V, 0 A.

What is the DC resistance (DCR) of this inductor?

The maximum DC resistance is 15 mΩ at 25°C.

What is the current rating for the IHLW5050CEER4R7M01?

The DC current rating is 10 A.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What type of mounting is required for this inductor?

This inductor requires surface mounting.

What are the dimensions of the IHLW5050CEER4R7M01?

The dimensions are 12.70mm L x 12.70mm W with a height of 3.50mm.

What is the saturation current for this inductor?

The saturation current is 24 A.
