| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ 25 °C) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Operating Voltage | |
| Ratings | |
| Saturation Current | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

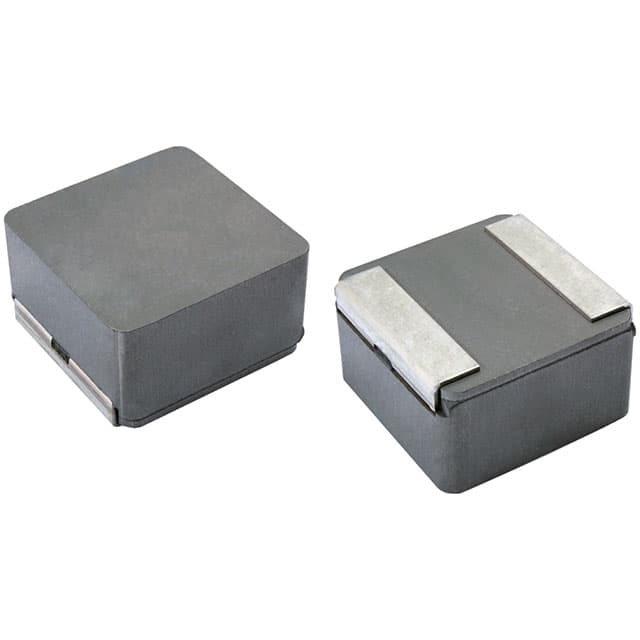

The Vishay Dale IHLP8787MZER101M5A is a shielded molded fixed inductor from the IHLP-8787MZ-5A series. It offers a nominal inductance of 100 µH at 100 kHz, 0.25 V, and 0 A, with a tolerance of ±20%. The inductor is rated for a DC current of 9.1 A (heat rating current) and has a typical saturation current of 7.0 A at 20% inductance drop. Its maximum DC resistance is 39.4 mΩ at 25 °C, with a typical value of 36.25 mΩ.
The component features a shielded construction and is designed for high-temperature operation up to 155 °C, with an operating temperature range of -55 °C to +155 °C. It is AEC-Q200 qualified, making it suitable for automotive applications. The rated operating voltage across the inductor is 75 V, and the self-resonant frequency is 2.01 MHz.
This surface-mount inductor comes in a nonstandard package measuring 22.48 mm by 22.00 mm with a height of 13.00 mm. Its molded construction provides low audible noise and handles high transient current spikes without saturation, making it suitable for DC/DC converters, LED drivers, and noise suppression in automotive systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.54 | $9.54 |
| 10+ | $7.85 | $7.85 |
| 20+ | $7.27 | $7.27 |
| 50+ | $6.85 | $6.85 |
| 100+ | $6.72 | $6.72 |
| 200+ | $6.34 | $6.34 |
| 500+ | $5.88 | $5.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 100 µH at 100 kHz, 0.25 V, 0 A, with a tolerance of ±20%.
The heat rating current is 9.1 A DC, and the typical saturation current is 7.0 A at 20% inductance drop.
The maximum DCR is 39.4 mΩ at 25 °C, with a typical value of 36.25 mΩ.
The typical self-resonant frequency is 2.01 MHz.
It is a surface-mount device in a nonstandard package measuring 22.48 mm x 22.00 mm with a height of 13.00 mm.
Yes, it is AEC-Q200 qualified.
The operating temperature range is -55 °C to +155 °C.
