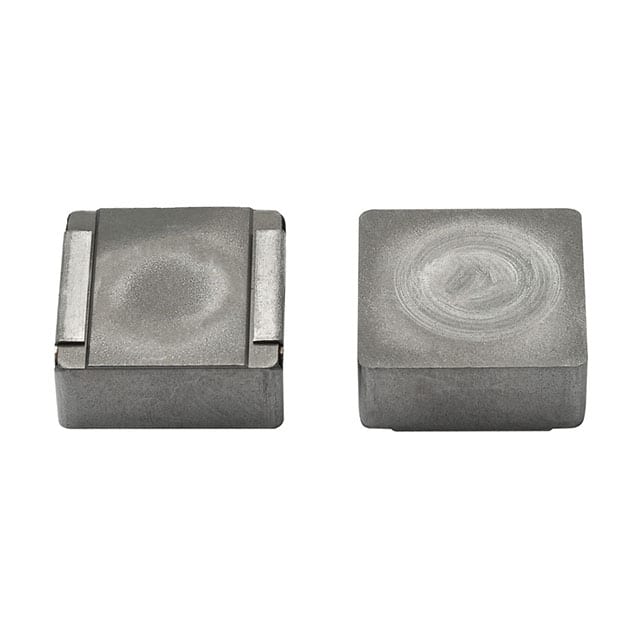

The Vishay Dale IHLP6767GZER220M1A is a shielded surface mount power inductor from the IHLP-6767GZ-1A series. It offers a nominal inductance of 22 µH at 100 kHz, 0.25 V, and 0 A, with a tolerance of ±20%. The inductor has a typical DC resistance of 20 mΩ and a maximum of 21 mΩ at 25 °C, ensuring efficient energy storage and low conduction losses.
This inductor is rated for a DC current of 12 A with a 40 °C temperature rise, and a saturation current of 9.5 A (typical) when inductance drops approximately 20%. The self-resonant frequency is 4.3 MHz, making it suitable for DC/DC converter applications up to 2 MHz. The rated operating voltage across the inductor is 50 V.
The component features a shielded construction and a metal composite core, which helps minimize electromagnetic interference and reduce audible noise. It is AEC-Q200 qualified, making it suitable for automotive environments. The operating temperature range is -55 °C to +125 °C, and the part temperature (ambient plus rise) should not exceed 125 °C under worst-case conditions.
The inductor is surface mountable with a nonstandard package size of 17.15 mm by 17.15 mm and a height of 7.00 mm. It is designed for high current handling and low DCR per microhenry, making it ideal for power management circuits in automotive, industrial, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.13 | $3.13 |
| 50+ | $3.11 | $3.11 |
| 100+ | $2.55 | $2.55 |
| 200+ | $2.45 | $2.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 22 µH at 100 kHz, 0.25 V, 0 A.
The heat rating current is 12 A (DC current causing a 40 °C temperature rise), and the saturation current is 9.5 A (DC current causing L0 to drop approximately 20%).
The typical DCR is 20 mΩ and the maximum DCR is 21 mΩ at 25 °C.
The self-resonant frequency is 4.3 MHz.
The package is nonstandard, with dimensions 17.15 mm x 17.15 mm and a height of 7.00 mm.
Yes, it has shielded construction.
The operating temperature range is -55 °C to +125 °C.
