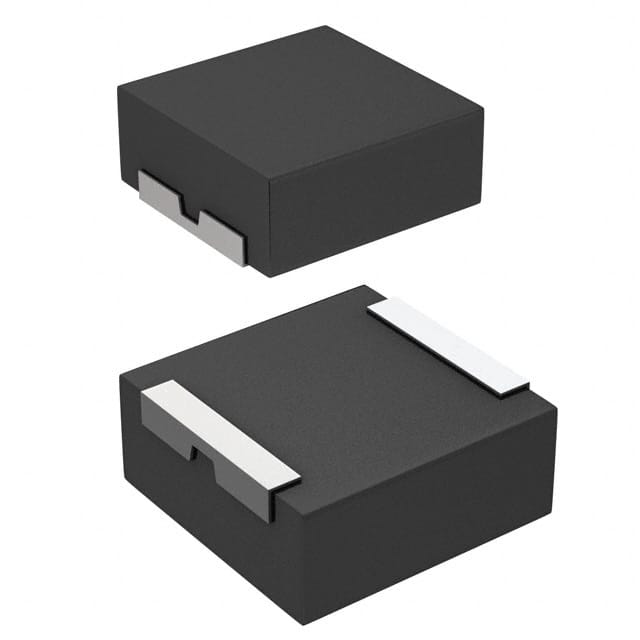

The Vishay Dale IHLP6767GZER1R8M01 is a shielded molded power inductor from the IHLP-6767GZ-01 series. It offers an inductance of 1.8 µH with ±20% tolerance, measured at 100 kHz and 0.25 V. The inductor features a typical DCR of 1.96 mΩ and a maximum DCR of 2.10 mΩ, ensuring low DC resistance for high current applications.
The component is rated for a heat rating current of 38 A (DC typical, causing 40°C temperature rise) and a saturation current of 65 A (DC typical, causing 20% inductance drop). It operates over a temperature range of -55°C to +125°C and can handle a rated voltage of 75 V across the inductor. The frequency range extends up to 2.0 MHz.
This inductor is designed for high current buck and boost converters, desktop/server applications, low profile high current power supplies, and DC/DC converters in distributed power systems. Its shielded construction minimizes electromagnetic interference, and the molded composite construction ensures ultra low buzz noise.
The package is a nonstandard IHLP-6767GZ-01 case, measuring 17.15 mm x 17.15 mm x 7.00 mm. It is surface mountable and is RoHS3 compliant (unverified) with MSL level 1 unlimited (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.66 | $3.66 |
| 10+ | $3.01 | $3.01 |
| 100+ | $2.23 | $2.23 |
| 200+ | $2.22 | $2.22 |
| 2,400+ | $2.16 | $2.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.8 µH with ±20% tolerance at 100 kHz, 0.25 V, 0 A.
Typical 1.96 mΩ, maximum 2.10 mΩ at 25°C.
Heat rating current is 38 A typical (ΔT=40°C), saturation current is 65 A typical (L drops 20%).
-55°C to +125°C.
IHLP-6767GZ-01 package, 17.15 mm x 17.15 mm x 7.00 mm.
Yes, it has shielded construction.
75 V.
