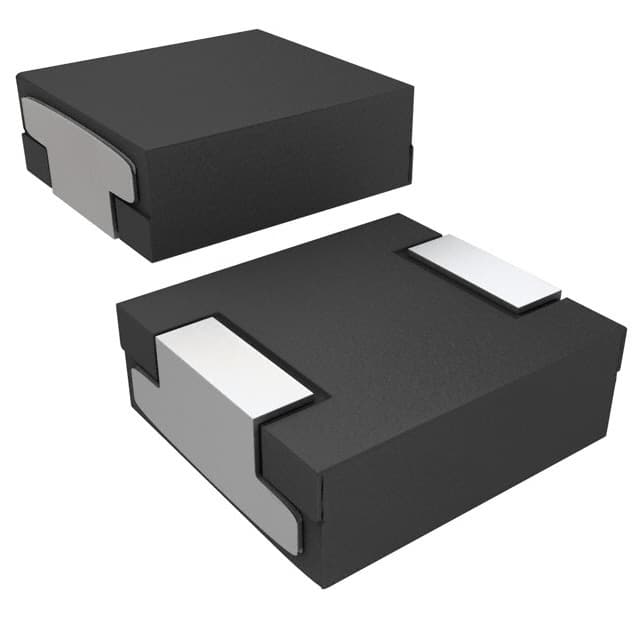

IHLP4040DZER1R0M11 The IHLP4040DZER1R0M11 is a 1 µH shielded surface mount power inductor from Vishay Dale. It features a 25 A heat rating current and a maximum DCR of 2.5 mOhm.
Mfr Part #:

IHLP4040DZER1R0M11

Available from 3 distributors
Mfr Name: Vishay
Vishay
The IHLP4040DZER1R0M11 is a 1 µH shielded surface mount power inductor from Vishay Dale. It features a 25 A heat rating current and a maximum DCR of 2.5 mOhm.
✓ Total Stock: 1,160 pcs
$ Price Range: $0.70 - $1.31

IHLP4040DZER1R0M11 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
439 pcs
439 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
439 pcs
439 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
282 pcs
282 pcs On Request 1 On Request On Request On Request On Request On Request

IHLP4040DZER1R0M11 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Length
Mounting Type
Operating Temperature
SVHC Present
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width

IHLP4040DZER1R0M11 Description

Short technical summary and product information.

The IHLP4040DZER1R0M11 is a molded, shielded surface mount power inductor from Vishay Dale's IHLP-4040DZ-11 series. It offers an inductance of 1 µH with ±20% tolerance, a typical heat rating current of 25 A (40 °C rise), and a typical saturation current of 20 A (20% inductance drop). The maximum DC resistance is 2.5 mOhm.



Designed for DC/DC power supplies, smart grid, solar, and telecommunications equipment, this inductor features a shielded metal construction that minimizes EMI. The operating temperature range is -55 °C to +125 °C, and the rated voltage across the inductor is 50 V.



The component is housed in a nonstandard 4040 package (10.80 mm x 10.16 mm x 4.00 mm) and is suitable for reflow soldering with a resistance to solder heat of 260 °C for 30 seconds (3 times max).

IHLP4040DZER1R0M11 Quick Information

Product Type: Fixed Inductor
Series: IHLP-4040DZ-11
Canonical Name: IHLP4040DZER1R0M11 Molded Shielded Surface Mount Power Inductor
Subcategory: Shielded SMD Inductor

IHLP4040DZER1R0M11 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IHLP4040DZER1R0M11 Estimated Pricing

Qty Low High
1+ $1.31 $1.31
10+ $1.08 $1.08
100+ $0.89 $0.89
500+ $0.76 $0.76
1,000+ $0.70 $0.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

IHLP4040DZER1R0M11 Features

  • Shielded metal construction for low EMI.
  • 1 µH inductance with ±20% tolerance.
  • 25 A typical heat rating current.
  • 2.5 mOhm maximum DC resistance.
  • Surface mount 4040 package.

IHLP4040DZER1R0M11 Applications

  • Ideal for DC/DC power supply designs.
  • Used in smart grid and solar equipment.
  • Suitable for telecommunications noise filtering.
  • Designed for high current filtering applications.

IHLP4040DZER1R0M11 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the IHLP4040DZER1R0M11?

The inductance is 1 µH at 100 kHz, 0.25 V, 0 A, with a tolerance of ±20%.

What is the maximum DC resistance (DCR) of this inductor?

The maximum DCR at 25 °C is 2.5 mOhm.

What is the heat rating current of the IHLP4040DZER1R0M11?

The typical heat rating current is 25 A, based on a 40 °C temperature rise.

What is the saturation current of this inductor?

The typical saturation current is 20 A, defined as the current causing a 20% inductance drop.

What is the package size of the IHLP4040DZER1R0M11?

The package is a nonstandard 4040 surface mount package measuring 10.80 mm x 10.16 mm x 4.00 mm.

What is the operating temperature range?

The operating temperature range is -55 °C to +125 °C.

Is the IHLP4040DZER1R0M11 shielded?

Yes, it is a shielded inductor with a molded metal construction.
