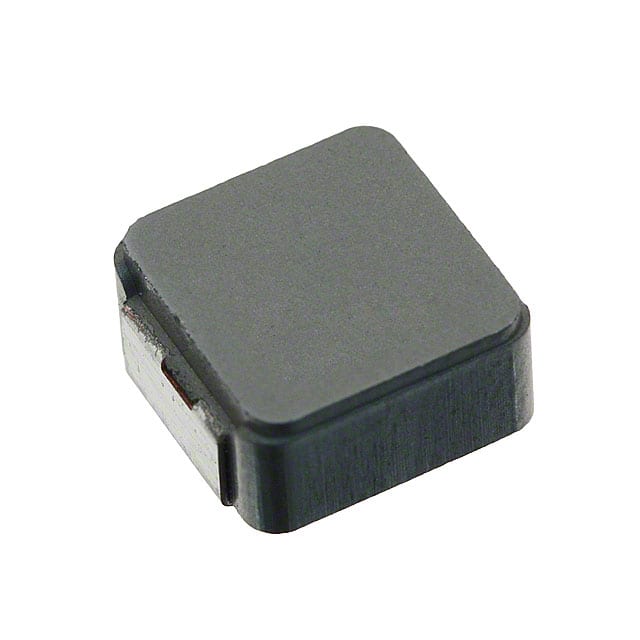

The Vishay Dale IHLP3232DZERR22M01 is a fixed inductor from the high-saturation IHLP series, featuring a 0.22 µH (220 nH) inductance with ±20% tolerance. This shielded, molded component is designed for surface mount assembly in a nonstandard 8.64 mm × 8.18 mm × 4.00 mm package.
Electrically, it supports a continuous DC current rating of 30.7 A (based on a 40 °C temperature rise) and a saturation current of 45 A. The maximum DC resistance is 1.68 mΩ (typical 1.57 mΩ), and its self-resonant frequency is 126 MHz. The rated operating voltage is 75 V, and the operating temperature range spans -55 °C to +125 °C.
Target applications include high-current point-of-load converters, DC/DC converters for FPGAs, notebook and desktop power supplies, and low-profile high-current power systems. The shielded construction and composite core minimize buzz noise and handle transient spikes without saturation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.18 | $1.18 |
| 10+ | $0.97 | $0.97 |
| 100+ | $0.80 | $0.80 |
| 500+ | $0.76 | $0.76 |
| 1,000+ | $0.69 | $0.69 |
| 2,500+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 0.22 µH (equivalent to 220 nH) at 100 kHz, 0.25 V, 0 A with a tolerance of ±20%.
The DC current rating is 30.7 A typical based on a 40 °C temperature rise. The saturation current is 45 A typical.
The maximum DC resistance is 1.68 mΩ at 25 °C; the typical value is 1.57 mΩ.
The typical self-resonant frequency (SRF) is 126 MHz.
The operating temperature range is -55 °C to +125 °C.
The package is a nonstandard SMD measuring 8.64 mm long, 8.18 mm wide, and 4.00 mm high.
Yes, it has a shielded construction.
