| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Heat Rating Current DC Typ. | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Part Temperature | |
| Rated Operating Voltage | |
| Ratings | |
| Saturation Current DC Typ. | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Width |

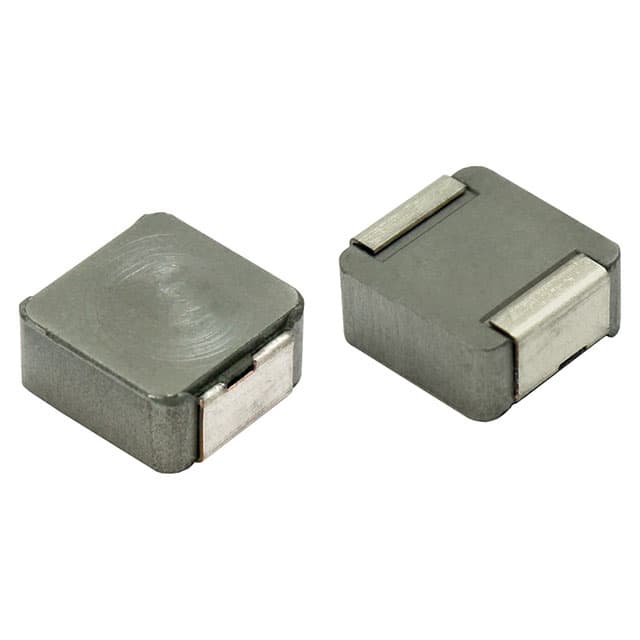

The Vishay Dale IHLP3232DZER220M1A is a shielded inductor from the IHLP-3232DZ-1A series, designed for energy storage and filtering applications up to 2 MHz. It features a low DCR of 89mΩ (max) and a current rating of 4.3A. The inductor operates within a temperature range of -55°C to 125°C and is AEC-Q200 qualified, making it suitable for demanding automotive environments.
This component has a 22µH inductance with a tolerance of ±20%. Its composite construction contributes to ultra-low buzz noise and the ability to handle high transient current spikes without saturation. The surface mount package is nonstandard, with dimensions of 8.64mm L x 8.18mm W x 4.00mm H.
Applications include DC/DC converters, engine and transmission control units, and noise suppression for various automotive systems like power seats and lighting. The rated operating voltage across the inductor is 50V.
The inductance value is 22 µH.
The tolerance is ±20%.
The maximum DC resistance is 89 mΩ at 25°C.
The current rating is 4.3 A.
The operating temperature range is -55°C to 125°C.
Yes, this inductor is AEC-Q200 qualified.
The package type is Surface Mount and it is classified as Nonstandard.
