| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
246 pcs
|
246 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

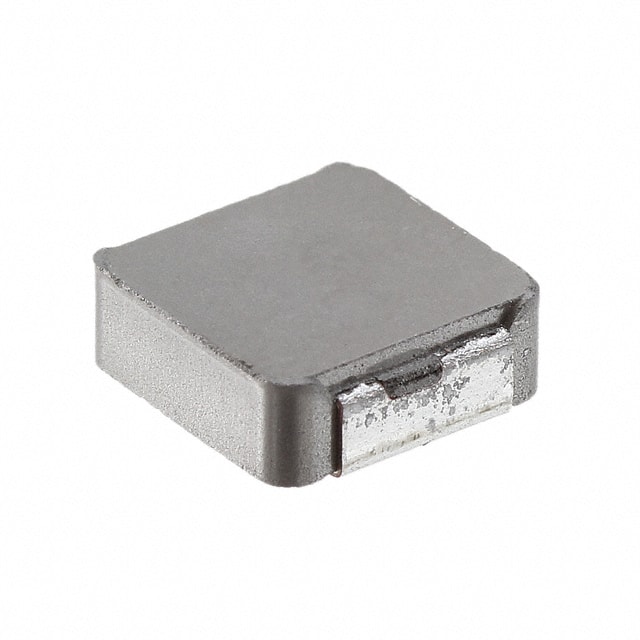

The IHLP3232CZER6R8M11 is a shielded power inductor from Vishay Dale's IHLP-3232CZ-11 series. It offers an inductance of 6.8 µH with ±20% tolerance, measured at 100 kHz and 0.25 V. The component is rated for a DC current of 6.5 A based on a 40°C temperature rise, and has a saturation current of 5 A (20% inductance drop). The maximum DC resistance is 37.8 mOhm at 25°C. The self-resonant frequency is typically 17 MHz. This inductor is designed for high current DC/DC converter applications, including POL converters and power supplies. It features shielded construction to minimize electromagnetic interference. The operating temperature range is -55°C to +125°C. The component is surface mountable with a nonstandard package size of 8.64 mm x 8.18 mm x 3.00 mm. It is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.81 | $0.81 |
| 100+ | $0.67 | $0.67 |
| 1,000+ | $0.59 | $0.59 |
| 2,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.8 µH at 100 kHz, 0.25 V, 0 A with ±20% tolerance.
6.5 A based on a 40°C temperature rise.
Maximum 37.8 mOhm at 25°C.
Typically 17 MHz.
Surface mount, nonstandard case, 8.64 mm x 8.18 mm x 3.00 mm.
5 A at which inductance drops 20%.
-55°C to +125°C.
