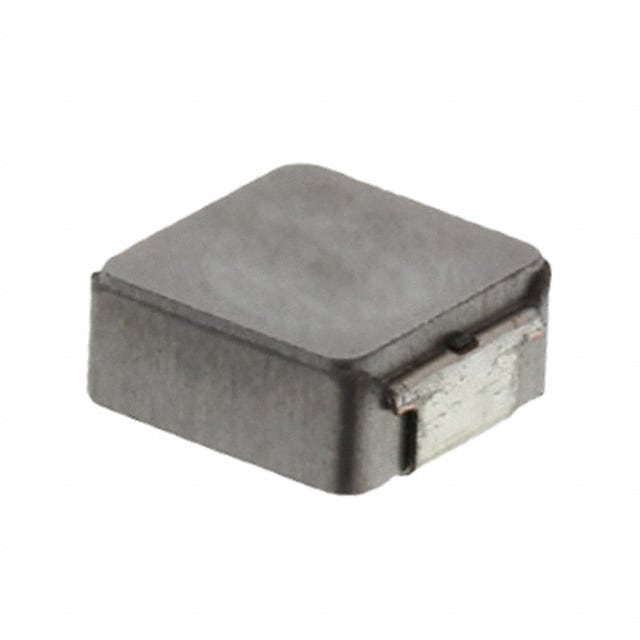

IHLP2525CZER220M8A Fixed inductor, 22 µH, ±20% tolerance, shielded molded construction. Rated at 2.8 A with 174 mΩ maximum DCR, SMD package, AEC-Q200 qualified.
Mfr Part #:

IHLP2525CZER220M8A

Available from 1 distributors
Mfr Name: Vishay
Vishay
Fixed inductor, 22 µH, ±20% tolerance, shielded molded construction. Rated at 2.8 A with 174 mΩ maximum DCR, SMD package, AEC-Q200 qualified.
✓ Total Stock: 14 pcs
$ Price Range: $0.64 - $1.46

IHLP2525CZER220M8A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IHLP2525CZER220M8A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Mounting Type
Operating Temperature
Ratings
Shielding
Tape & Reel
Tolerance
Type
Voltage Rating
Width
View Similar Products (0)

IHLP2525CZER220M8A Description

Short technical summary and product information.

The Vishay Dale IHLP2525CZER220M8A is a shielded molded inductor from the IHLP-2525CZ-8A series, designed for high temperature automotive and industrial applications. It offers 22 µH inductance with ±20% tolerance in a surface-mount package.



Electrical characteristics include a typical DCR of 163 mΩ (max 174 mΩ), heat rating current of 2.8 A (40°C rise), and saturation current of 2.2 A (20% drop). The self-resonant frequency is 8.76 MHz, and the rated operating voltage is 75 V. The part is optimized for DC/DC energy storage up to 1–2 MHz and filter applications up to the SRF.



Mechanically, the inductor measures 6.86 mm x 6.47 mm x 3.00 mm in a nonstandard SMD package. It is shielded and molded with a lead-free finish. Operating temperature ranges from -55°C to +180°C. The component is AEC-Q200 qualified for automotive use and is RoHS compliant (unverified) and REACH unaffected (unverified).

IHLP2525CZER220M8A Quick Information

Product Type: Fixed Inductor
Series: IHLP-2525CZ-8A
Canonical Name: IHLP2525CZER220M8A Vishay Dale IHLP-2525CZ-8A Shielded Molded Inductor, 22 µH, ±20%, 2.8 A, 174 mΩ DCR, SMD
Subcategory: Shielded Molded Inductor

IHLP2525CZER220M8A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead (Pb)-Free

IHLP2525CZER220M8A Estimated Pricing

Qty Low High
1+ $1.46 $1.46
10+ $1.21 $1.21
25+ $1.06 $1.06
100+ $0.99 $0.99
250+ $0.92 $0.92
500+ $0.87 $0.87
1,000+ $0.80 $0.80
2,000+ $0.67 $0.67
4,000+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

IHLP2525CZER220M8A Features

  • 22 µH inductance with ±20% tolerance.
  • Rated for 2.8 A continuous current.
  • Maximum DCR of 174 mΩ.
  • Shielded molded construction for low noise.
  • AEC-Q200 qualified for automotive.

IHLP2525CZER220M8A Applications

  • Ideal for DC/DC power supply filtering.
  • Used in automotive motor control circuits.
  • EMI filter applications up to 180°C.
  • Energy storage for GaN switched-mode supplies.
  • Suitable for ADAS and body electronics.

IHLP2525CZER220M8A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

22 µH at 100 kHz, 0.25 V, 0 A.

What is the current rating?

Heat rating: 2.8 A (40°C rise). Saturation: 2.2 A (20% drop).

What is the DC resistance?

Typical 163 mΩ, maximum 174 mΩ at 25°C.

What is the self-resonant frequency?

8.76 MHz typical.

What is the package size?

Nonstandard SMD package: 6.86 mm x 6.47 mm x 3.00 mm.

Is it shielded?

Yes, shielded construction.

Is it AEC-Q200 qualified?

Yes, AEC-Q200 qualified for automotive applications.
