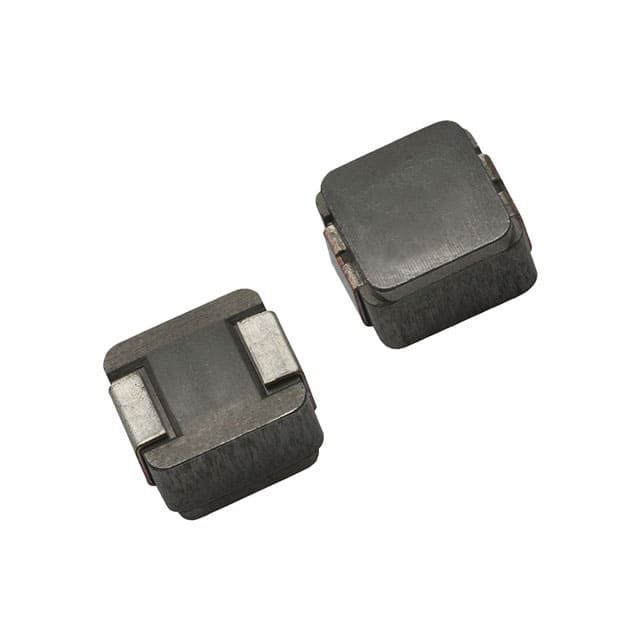

IHLP2020CZER4R7M1A The IHLP2020CZER4R7M1A is a 4.7 µH shielded surface mount inductor from Vishay Dale's IHLP-2020CZ-1A series. It features 4.5A rated current, 60 mOhm max DCR, and AEC-Q200 qualification.
Mfr Part #:

IHLP2020CZER4R7M1A

Available from 1 distributors
Mfr Name: Vishay
Vishay
The IHLP2020CZER4R7M1A is a 4.7 µH shielded surface mount inductor from Vishay Dale's IHLP-2020CZ-1A series. It features 4.5A rated current, 60 mOhm max DCR, and AEC-Q200 qualification.
✓ Total Stock: 5,821 pcs
$ Price Range: $0.62 - $1.06

IHLP2020CZER4R7M1A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,821 pcs
On Request
5821 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IHLP2020CZER4R7M1A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Ratings
Shielding
Tape & Reel
Termination Finish
Tolerance
Width
View Similar Products (0)

IHLP2020CZER4R7M1A Description

Short technical summary and product information.

The Vishay Dale IHLP2020CZER4R7M1A is a 4.7 µH shielded surface mount inductor from the IHLP-2020CZ-1A series. It is designed for automotive applications and is AEC-Q200 qualified. The inductor features a metal composite core and shielded construction, providing low magnetic field radiation and ultra-low buzz noise.



Electrical specifications include a nominal inductance of 4.7 µH with ±20% tolerance, a maximum DC resistance of 60 mOhms, and a self-resonant frequency of 25 MHz typical. The component is rated for a DC current of 4.5 A (with heat rating current of 5.1 A typical at 40°C rise). Saturation currents are 3.7 A at 20% inductance drop and 5.4 A at 30% drop. The rated operating voltage across the inductor is 40 V.



The inductor operates over a temperature range of -55°C to +125°C and is housed in a nonstandard 2020 package (5.49 mm x 5.18 mm x 3.00 mm) with surface mount termination. The termination finish is e3 (JEDEC lead-free). This component is suitable for DC/DC converters, engine and transmission control units, LED drivers, and noise suppression in automotive systems.

IHLP2020CZER4R7M1A Quick Information

Product Type: Fixed Inductor
Series: IHLP-2020CZ-1A
Canonical Name: IHLP2020CZER4R7M1A – Vishay Dale IHLP-2020CZ-1A Series, 4.7 µH Shielded Inductor, AEC-Q200
Subcategory: Shielded Inductor

IHLP2020CZER4R7M1A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IHLP2020CZER4R7M1A Estimated Pricing

Qty Low High
1+ $1.06 $1.06
10+ $0.88 $0.88
100+ $0.72 $0.72
1,000+ $0.62 $0.62
2,000+ $0.62 $0.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

IHLP2020CZER4R7M1A Features

  • Shielded metal composite core inductor.
  • AEC-Q200 qualified for automotive applications.
  • 4.5 A rated DC current with low DCR.
  • Self-resonant frequency of 25 MHz typical.
  • Surface mount 2020 package, 5.49 mm x 5.18 mm.

IHLP2020CZER4R7M1A Applications

  • Used in automotive engine control units.
  • Suitable for DC/DC converter energy storage.
  • Ideal for LED driver circuits.
  • Noise suppression for motor loads.

IHLP2020CZER4R7M1A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the IHLP2020CZER4R7M1A?

4.7 µH at 100 kHz, 0.25 V, 0 A.

What is the rated current of this inductor?

The DC current rating is 4.5 A, with heat rating current of 5.1 A typical at 40°C rise.

What is the DC resistance?

Maximum DC resistance is 60 mOhm.

What is the self-resonant frequency?

25 MHz typical.

What is the package size?

Nonstandard 2020 package, dimensions 5.49 mm x 5.18 mm x 3.00 mm.

Is this inductor shielded?

Yes, it is shielded.

Is this inductor qualified for automotive?

Yes, it is AEC-Q200 qualified.
