| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,490 pcs
|
3490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,490 pcs
|
3490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,531 pcs
|
1531 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
715 pcs
|
715 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Frequency Range | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Voltage | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

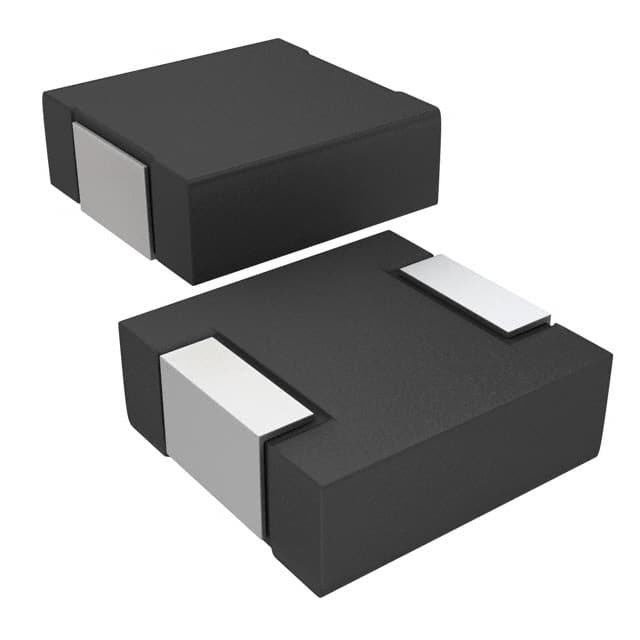

The Vishay Dale IHLP2020CZER3R3M01 is a fixed inductor from the IHLP-2020CZ-01 series, offering a nominal inductance of 3.3 µH with a tolerance of ±20%. It features a shielded molded construction for low electromagnetic interference and is designed for surface mount applications. The inductor has a typical DC resistance of 52.1 mΩ and a maximum of 54.7 mΩ at 25°C. It can handle a DC current of 5.0 A typical (based on a 40°C temperature rise) and has a saturation current of 8.5 A typical (when inductance drops approximately 20%). The self-resonant frequency is 31 MHz, and the operating frequency range extends up to 5.0 MHz. The rated voltage across the inductor is 50 V. Operating temperature range is -55°C to 125°C. The device is packaged in a nonstandard case with dimensions 5.49 mm x 5.18 mm x 3.00 mm. This inductor is suitable for high current POL converters, DC/DC converters, battery powered devices, and FPGA power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 10+ | $0.89 | $0.89 |
| 100+ | $0.73 | $0.73 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 µH with ±20% tolerance measured at 100 kHz, 0.25 V, 0 A.
Heat rating current: 5.0 A typical (ΔT of 40 °C). Saturation current: 8.5 A typical (L drops ~20%).
Typical 52.1 mΩ, maximum 54.7 mΩ at 25 °C.
31 MHz typical.
Nonstandard surface mount package. Dimensions: 5.49 mm length, 5.18 mm width, 3.00 mm height.
-55°C to 125°C.
Yes, it has shielded construction.
