| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

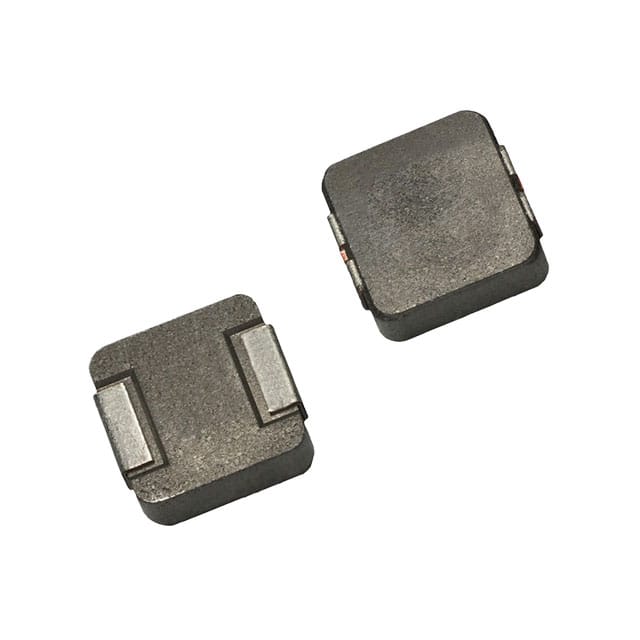

The Vishay Dale IHLP2020BZER1R0MA1 is a surface-mount shielded power inductor part of the IHLP-2020BZ series. It provides 1 µH inductance with ±20% tolerance, measured at 100 kHz, 0.25 V, 0 A. The inductor features a metal composite core that ensures high saturation current handling and low core losses. It is rated for a continuous current of 7 A based on a 40°C temperature rise, and can handle up to 16 A before inductance drops by 20%. DC resistance is 18.9 mΩ typical and 20 mΩ maximum. The self-resonant frequency is 62 MHz typical, making it suitable for power conversion applications up to several MHz.
Designed for automotive applications, this inductor is AEC-Q200 qualified and operates over a temperature range of -55°C to +125°C. The rated operating voltage across the inductor is 50 V. The component is fully shielded to minimize EMI and is housed in a compact 5.18 mm x 5.18 mm x 2.0 mm package. Its low profile and high current capability make it ideal for space-constrained power supplies in automotive infotainment, lighting, and engine control units.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
| 10+ | $0.82 | $0.82 |
| 100+ | $0.67 | $0.67 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH with a tolerance of ±20% measured at 100 kHz, 0.25 V, 0 A.
The heat rating current is 7 A (ΔT 40°C) and the saturation current is 16 A (20% inductance drop).
DC resistance is 18.9 mΩ typical and 20 mΩ maximum at 25°C.
The self-resonant frequency is 62 MHz typical.
The package is IHLP-2020BZ with dimensions 5.18 mm x 5.18 mm x 2.0 mm, surface mount.
Yes, the inductor is magnetically shielded to reduce EMI.
Yes, this inductor is AEC-Q200 qualified for automotive applications.
